 IR receiver
Unit: mm

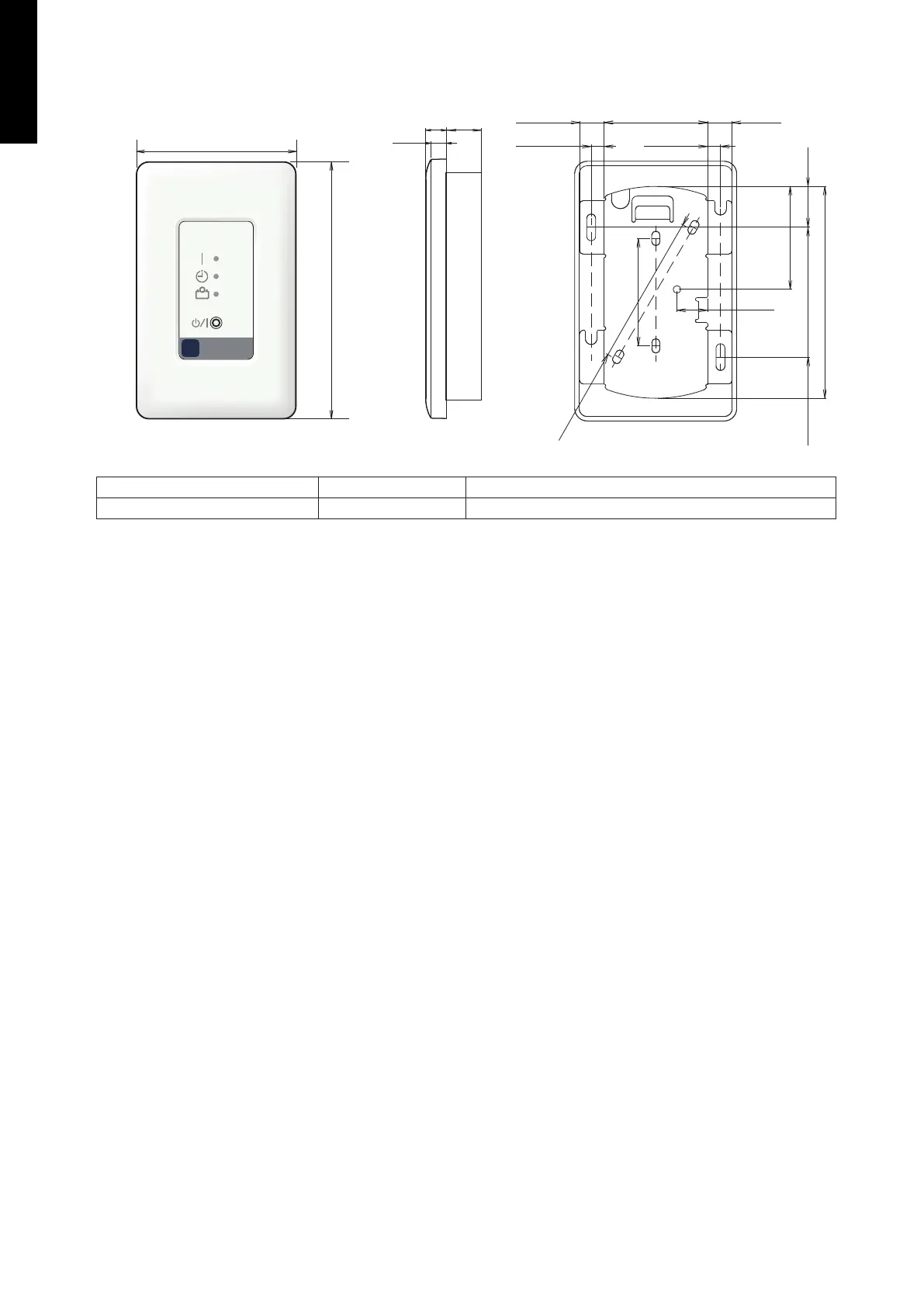

Front view
90
8.5
11.5 18.5
13.6
7.2 7.2
17
57.4 13.6
145
22.9
118.4
60
72.4
83.5
57.6
Side view Rear view
Size (H × W × D) mm 145 × 90 × 30
Weight g 150
