Fujitsu AOYG36LBLA5 User Manual

¢
UTY-RSRY/UTY-RHRY

Setting procedure by using wired remote controller
The function number and the associated setting value are displayed on the LCD of the remote
controller. Follow the instructions written in the local setup procedure supplied with the remote
controller, and select appropriate setting according to the installation environment.
Before connecting the power supply of the indoor unit, reconfirm following items:
• Piping air tight test and vacuuming have been performed firmly.
• There is no wiring mistake.
NOTE:
Set only one Master remote controller.

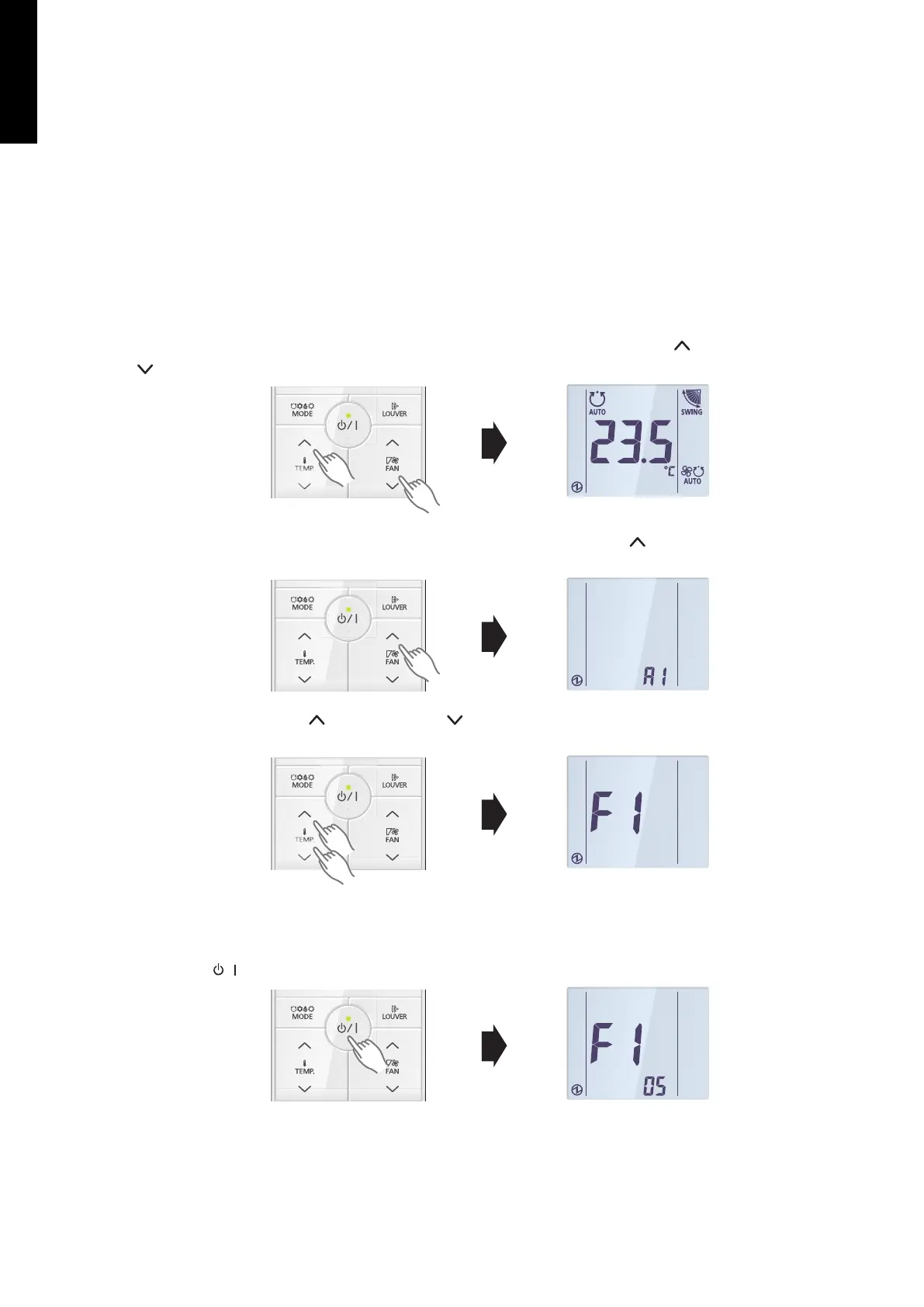

1. Connect the power supply.
2.
With “Monitor mode” screen displayed, press and hold the SET TEMP.
button and FAN
button simultaneously for at least 2 seconds.
3. The Menu 1 screen is displayed. Press and hold the SET TEMP. button at least 2 sec-
onds. Setting mode selection screen is displayed.
4. Press the SET TEMP. or SET TEMP. button to select F1 (Menu 2-F1) setting mode or
F2 (Menu 2-F2) setting mode.
F1: Initial settings mode
F2: Maintenance settings mode
5.
Press the
/
button. Setting item selection screen is displayed. (Item No. is displayed.)
DESIGN & TECHNICAL MANUAL
- 238 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
