11. Setting results are displayed after data transmission.

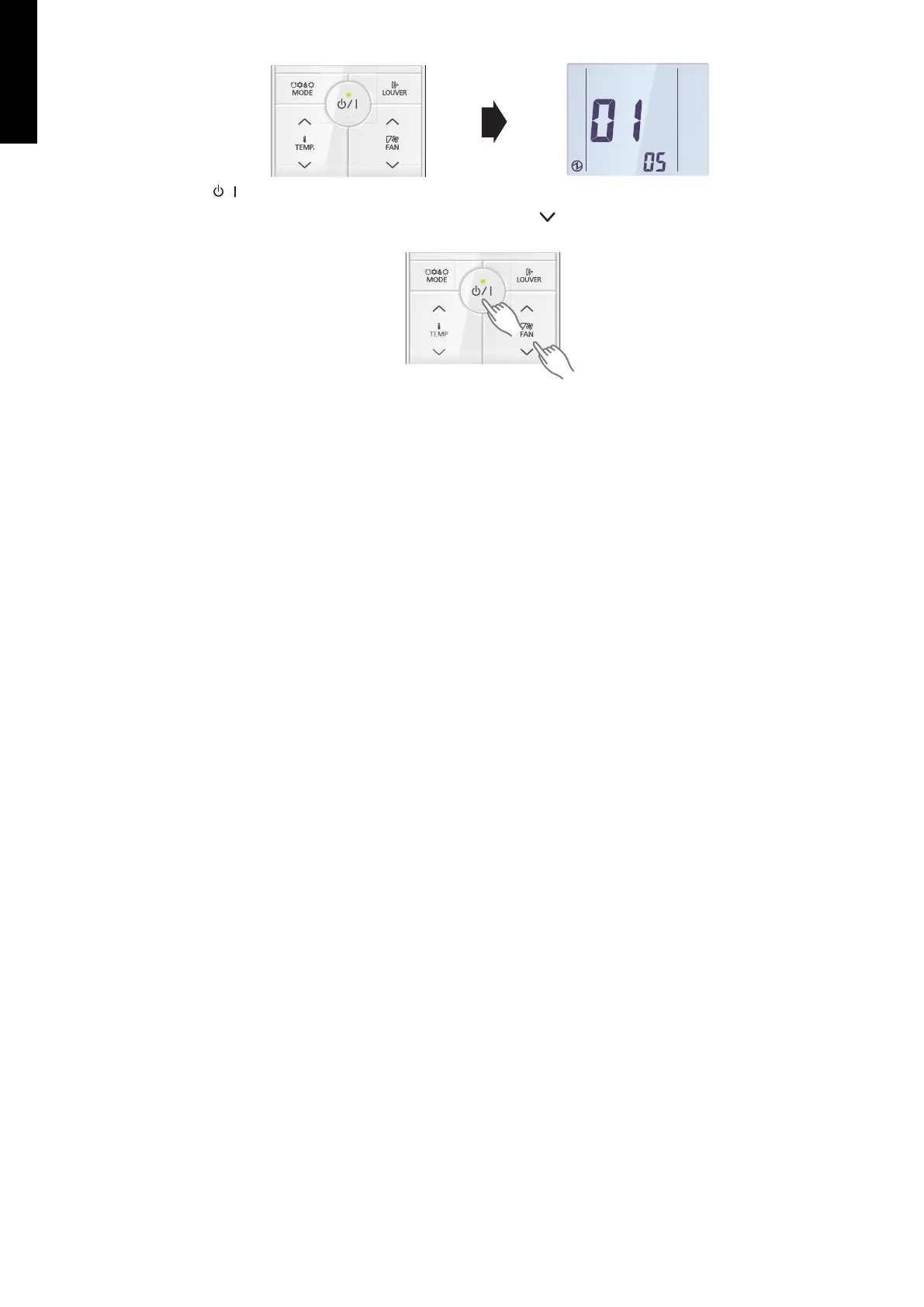

12. Press the
/
button to return to the 2-wire remote controller address selection screen of
step 9. If setting has been completed, press the FAN
button to return to the Menu 2-F1
item selection screen.

Setting up each indoor unit
Repeat the procedure from step 1 to 6, and set up the indoor units requiring function setting.

Resetting the power after setting up function of all indoor units
NOTES:
• If the reset is not performed, function cannot be read correctly.
• After all the functions have been set, the circuit breaker needs to be switched off for at least 2
minutes.
– After the 2 minutes has passed, power can be restored.
– The set function is stored in the PCB and will remain in memory even when the power of
indoor unit is turned off.
However setting function is effective after disconnecting the power supply and then recon-
necting it.
• Record the latest configuration of the indoor unit function setting on a label, and put the label
on the unit so it can be used for after-sales service operations.
DESIGN & TECHNICAL MANUAL
- 240 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
