Fujitsu AOYG36LBLA5 User Manual

¢

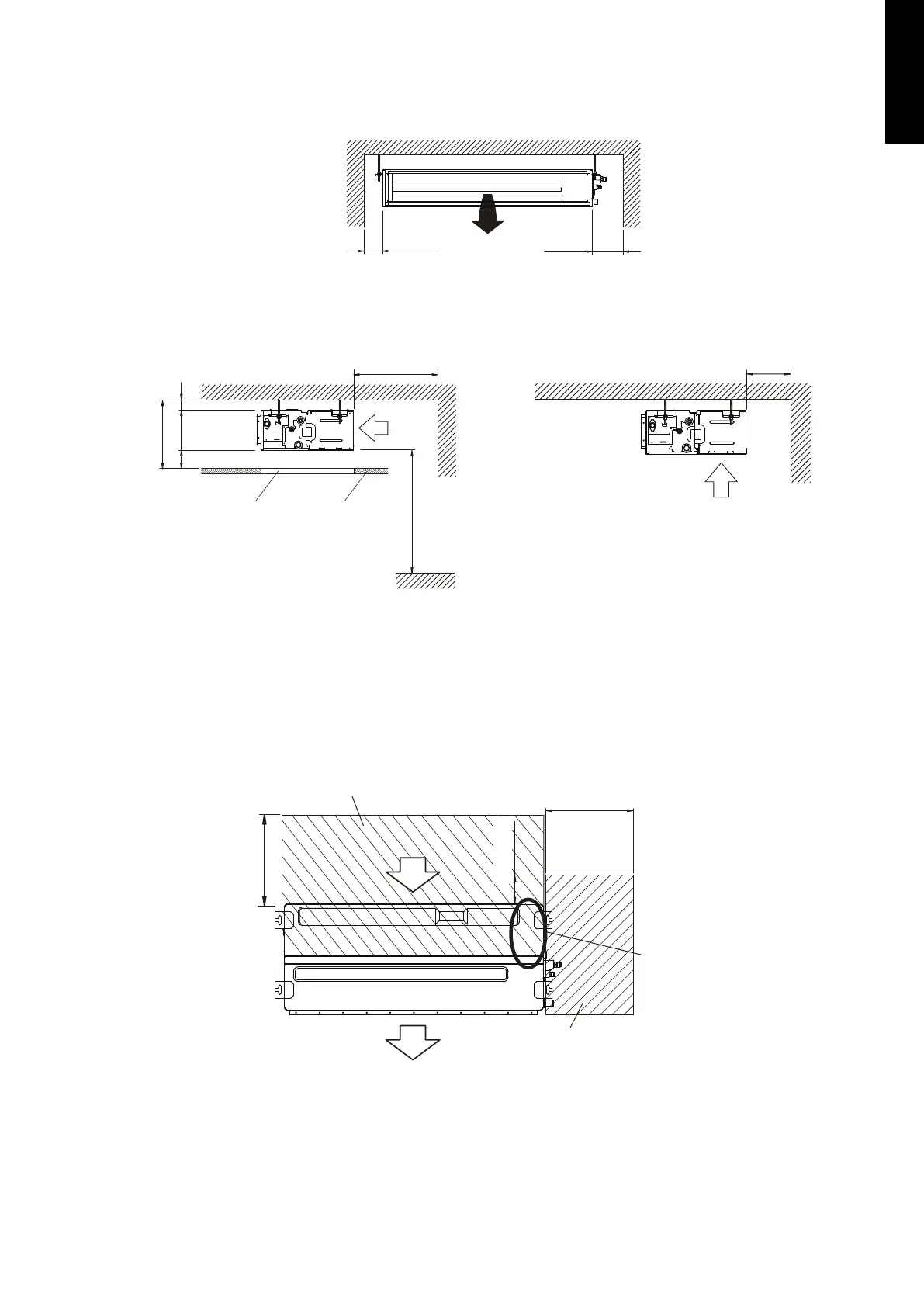

Installation space requirement
Provide sufficient installation space for product safety.
150
or more*
400
or more
Unit: mm
Strong and durable ceiling
Indoor unit
*: 400 or more when drain from drain pipe
Right
side
Left
side
• When intaking air from back:
Service access Ceiling
2,500 or more
(When no ceiling)
Floor
225 or more
5 or more
20 or more
300 or more
Air
• When intaking air from bottom:
100 or more
Air
¢
Maintenance space requirement
For future maintenance and service access, provide sufficient maintenance space.
NOTE: Do not place any wiring or illumination in the maintenance space, as they will impede
service.
Unit: mm
Top view
Service access
Air
Air
Control box
400 or more
100 or more
300 or more*
Service space
*: More than 100 when intaking air from bottom
- 25 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
