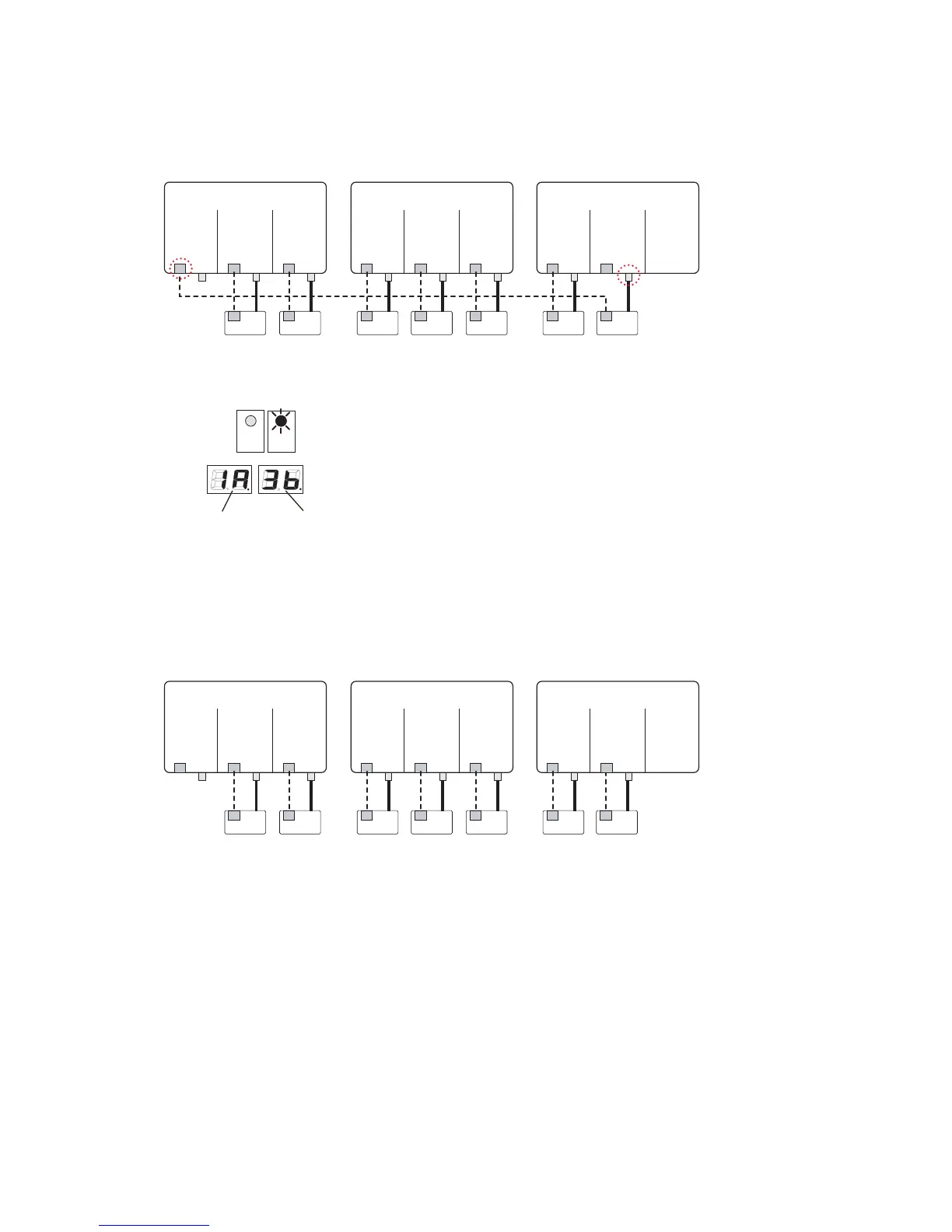

EXAMPLE3
When connection destination does not match.
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B
Indoor
unit 1
Indoor
unit 2
Indoor
unit 3
Indoor
unit 4
Indoor
unit 5
Indoor
unit 6
Indoor
unit 7
Branch box 1 (Primary) Branch box 2 (Secondary) Branch box 3 (Secondary)
[Display (Check run ends)]
Branch box 1
Indoor unit A
Branch box 3
Indoor unit B
to
LED961 LED962
LED981
POWER
MODE
LED982
ERROR
[Coping process]
The wire connected to Terminal Indoor unit A of Branch box1(Primary) must be rewired to
Terminal Indoor unit B of Branch box 3(Secondary).
[After correcting wiring]
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B
Indoor
unit 1
Indoor
unit 2
Indoor
unit 3
Indoor
unit 4
Indoor
unit 5
Indoor
unit 6
Indoor
unit 7
Branch box 1 (Primary) Branch box 2 (Secondary) Branch box 3 (Secondary)
