8. COMPRESSOR CONTROL
(1). OPEARTION FREQUENCY RANGE
The operation frequency of the compressor is different based on the operation mode as
shown in the table 9.
Cooling Heating
Min Max Min Max
Dry
AS*9LSACW 18Hz 80Hz 18Hz 130Hz 33Hz
AS*12LSACW 18Hz 96Hz 18Hz 130Hz 33Hz
AS*9LSBCW 18Hz 80Hz 18Hz 130Hz 33Hz
AS*12LSBCW 18Hz 96Hz 18Hz 130Hz 33Hz
AS*14LSBCW 18Hz 90Hz 18Hz 119Hz 24Hz
AS*18LSBCW 18Hz 90Hz 18Hz 119Hz 24Hz
AS*9LSACW 56Hz 64Hz 74Hz 87Hz 108Hz 120Hz
AS*12LSACW 56Hz 64Hz 74Hz 87Hz 108Hz 120Hz
AS*9LSBCW 56Hz 74Hz 87Hz 97Hz 108Hz 119Hz
AS*12LSBCW 56Hz 74Hz 87Hz 97Hz 108Hz 119Hz
AS*14LSBCW 40Hz 59Hz 72Hz 80Hz 101Hz 110Hz
AS*18LSBCW 40Hz 59Hz 72Hz 80Hz 101Hz 110Hz
AS*9LSACW 80sec 30sec 30sec 30sec 50sec 60sec
AS*12LSACW 80sec 30sec 30sec 30sec 50sec 60sec
AS*9LSBCW 80sec 60sec 60sec 180sec 60sec 60sec
AS*12LSBCW 80sec 60sec 60sec 180sec 60sec 60sec
AS*14LSBCW 60sec 40sec 40sec 60sec 150sec 60sec
AS*18LSBCW 60sec 40sec 40sec 60sec 150sec 60sec
(Table 9 : Compressor Operation Frequency Range)
(2). OPEARTION FREQUENCY CONTROL AT START UP

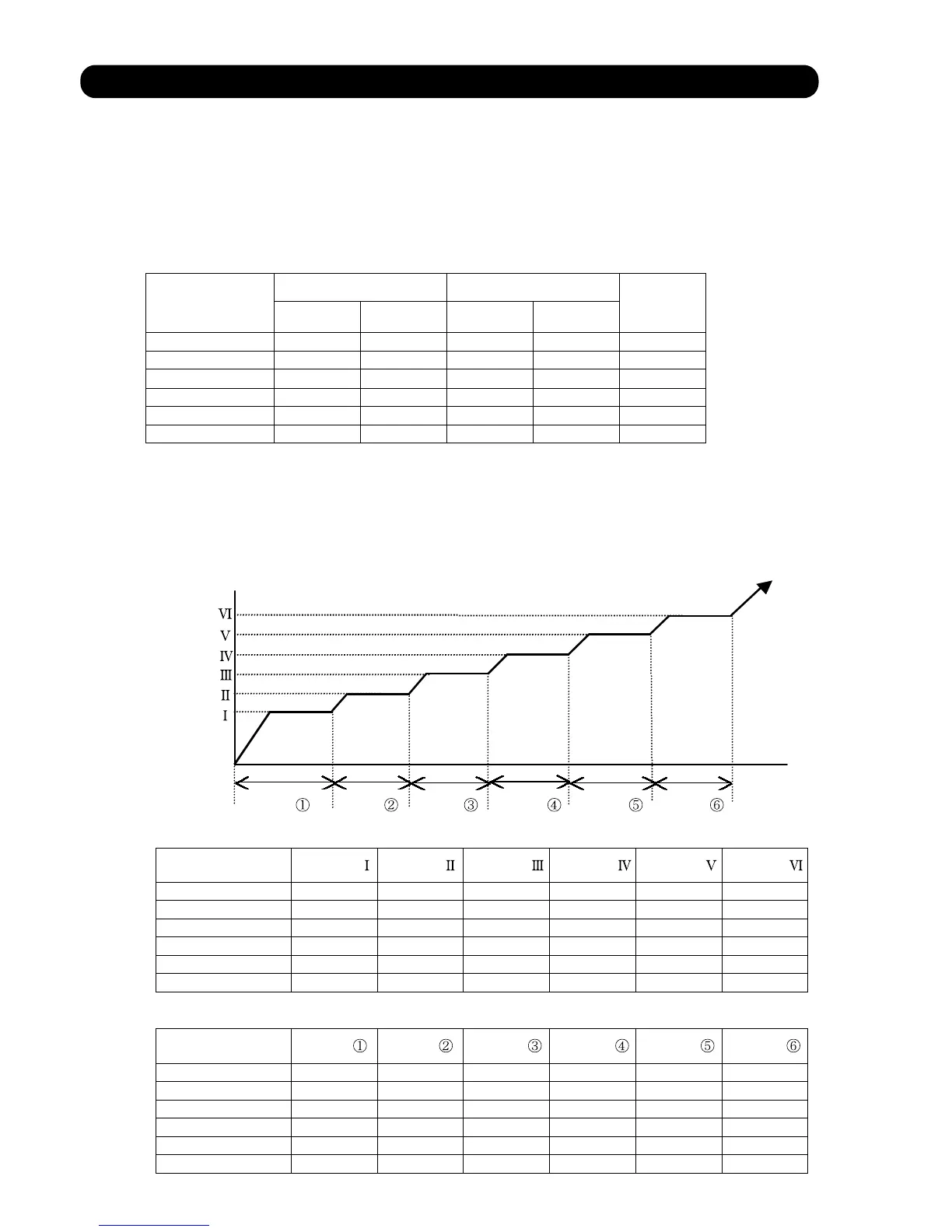

The compressor frequency soon after the start-up is controlled as shown in the figure 10.
(Fig.10 : Compressor Control at Start-up)
Time
Time Time Time
Time
Time
(Frequency)
(Time)
Frequency
Frequency
Frequency Frequency
Frequency
Frequency
Time Time
Time Time Time Time
Frequency
Frequency
Frequency
Frequency
Frequency
Frequency
