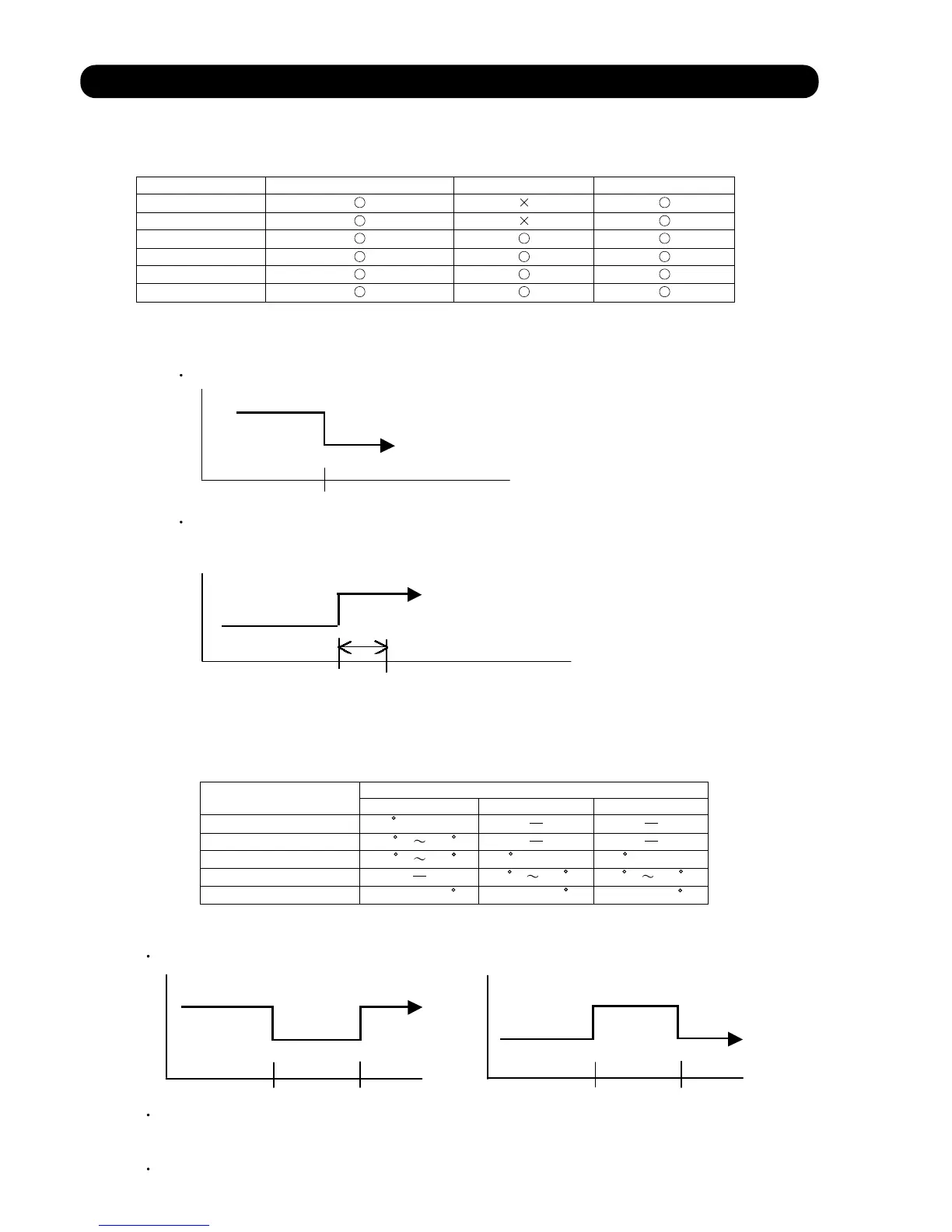

9. TIMER OPEARTION CONTROL
(1). OPEARTION FREQUENCY RANGE
The table 10 shows the available timer setting based on the product model.
ON TIMER / OFF TIMER PROGRAM TIMER SLEEP TIMER
AS*9LSACW
AS*12LSACW
AS*9LSBCW
AS*12LSBCW
AS*14LSBCW
AS*18LSBCW
OFF timer : When the clock reaches the set time, the air conditioner will be turned off.
Operation mode
Stop mode
Set time of timer
ON timer : Depending on the difference between the actual room temperature and the set
temperature value, the unit will start operation automatically in order to bring the room
temperature to the desired set temperature value by the timer previously set.
Operation mode
Stop mode
Before the operation start
Set time of timer
At the ON timer when [Heating/Auto time:45 min] [Cooling/dry time:20 min] are reduced, the
indoor fan motor runs with S-Lo for 1 minute, and detects the room temperature. The [Operation
start time] is determined according to the Table 11 as shown below, and the operation is started.
Differential of set temperature and room temperature
Operation Start Time
Heating Cooling Dry
Before 44 minutes 20 C or larger
Before 30 minutes 15 C 20 C
Before 19 minutes 10 C 15 C 10 C or larger 10 C or larger
Before 15 minutes 5 C 10 C 5 C 10 C
Before 10 minutes Less than 10 C Less than 5 C Less than 5 C
The program timer allows the OFF timer and ON timer to be used in combination one time.
Operation mode
Operation will start from the timer setting (either OFF timer or ON timer) whichever is closest
to the clock's current timer setting. The order of operations is indicated by the arrow in the remote
control unit's display.
SLEEP timer operation cannot be combined with ON timer operation.
(Table 10 : Timer Setting)
(Table 11)
(2). PROGRAM TIMER
Stop mode
Stop mode
Stop mode
Operation mode
Operation mode
Set time
Set time Set time Set time
05-10
