WALL MOUNTED ASTG30, 34KMTA

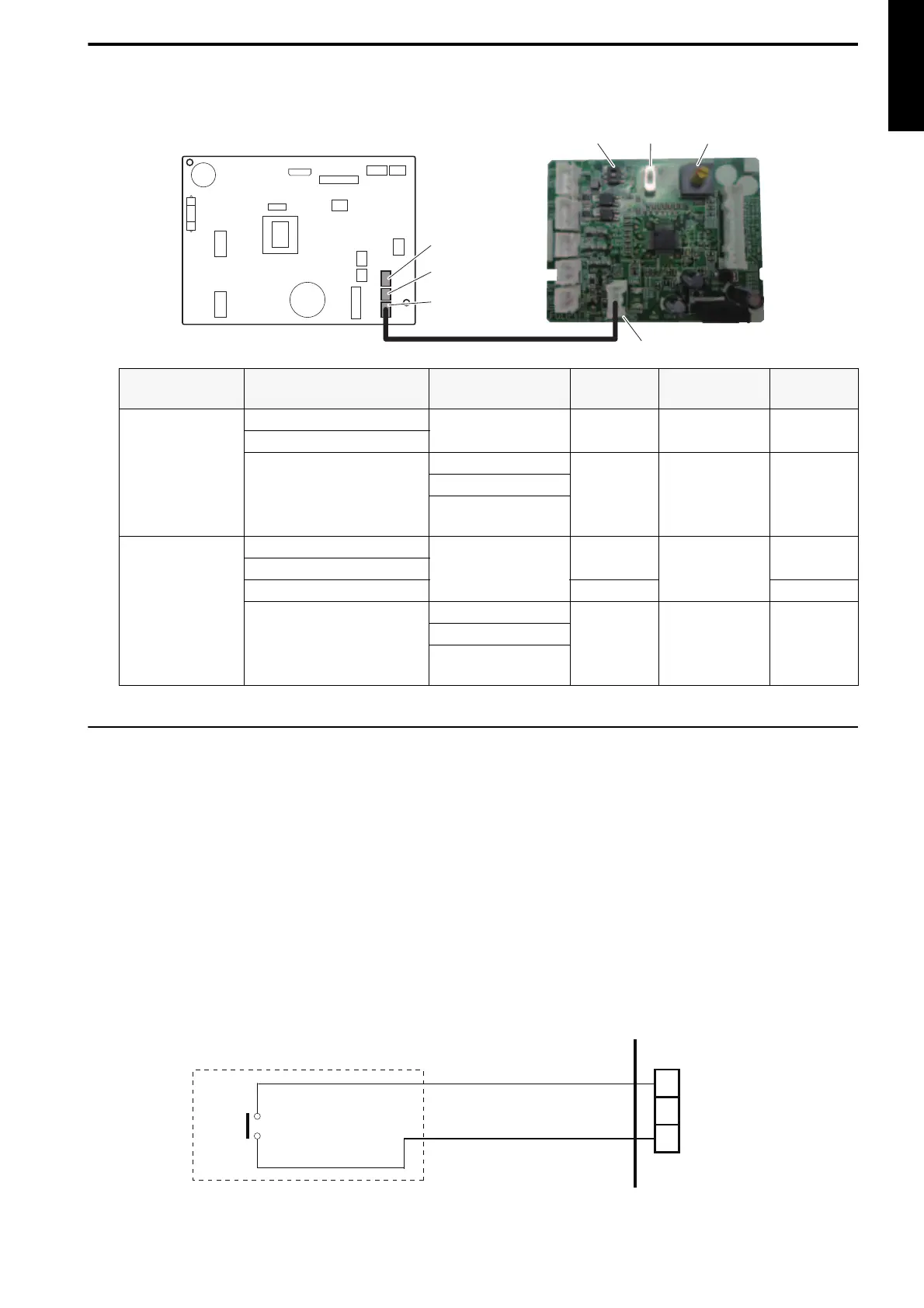

10. External input and output
10-1. External input
With using external input function, some functions on this product can be controlled from an external
device.
• “Operation/Stop” mode or "Forced stop" mode can be selected with function setting of indoor
unit.
• A twisted pair cable should be used. Maximum length of cable is 150 m.
• Use an external input and output cable with appropriate external dimension, depending on the
number of cables to be installed.
• The wire connection should be separate from the power cable line.
 Indoor unit
Indoor unit functions such as Operation/Stop can be done by using indoor unit connectors.
*1: The switch can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
PCB External input External output Connector Input select
Input
signal
Indoor unit
Operation/Stop
- CN2 Dry contact Edge
Forced stop
-
Operation status
CN3 - -
Error status
Indoor unit fan
operation status
External input
and output
(UTY-XCSXZ1)
Operation/Stop
-
CN313/
CN314
Dry contact/
Apply voltage
Edge/Pulse
Forced stop
Forced thermostat off CN313 Edge
-
Operation status CN310
--
Error status CN311
Indoor unit fan
operation status
CN312
Rotary switchSW302
CN308
SW301
CN2 (Ext. in)
CN3 (Ext. out)
CN6
(Ext. in/out PCB)
External input and output PCBIndoor unit PCB
1
2
3

Connector
(CN2)
PCB


Connected unit
