5. CONTROL SYSTEM

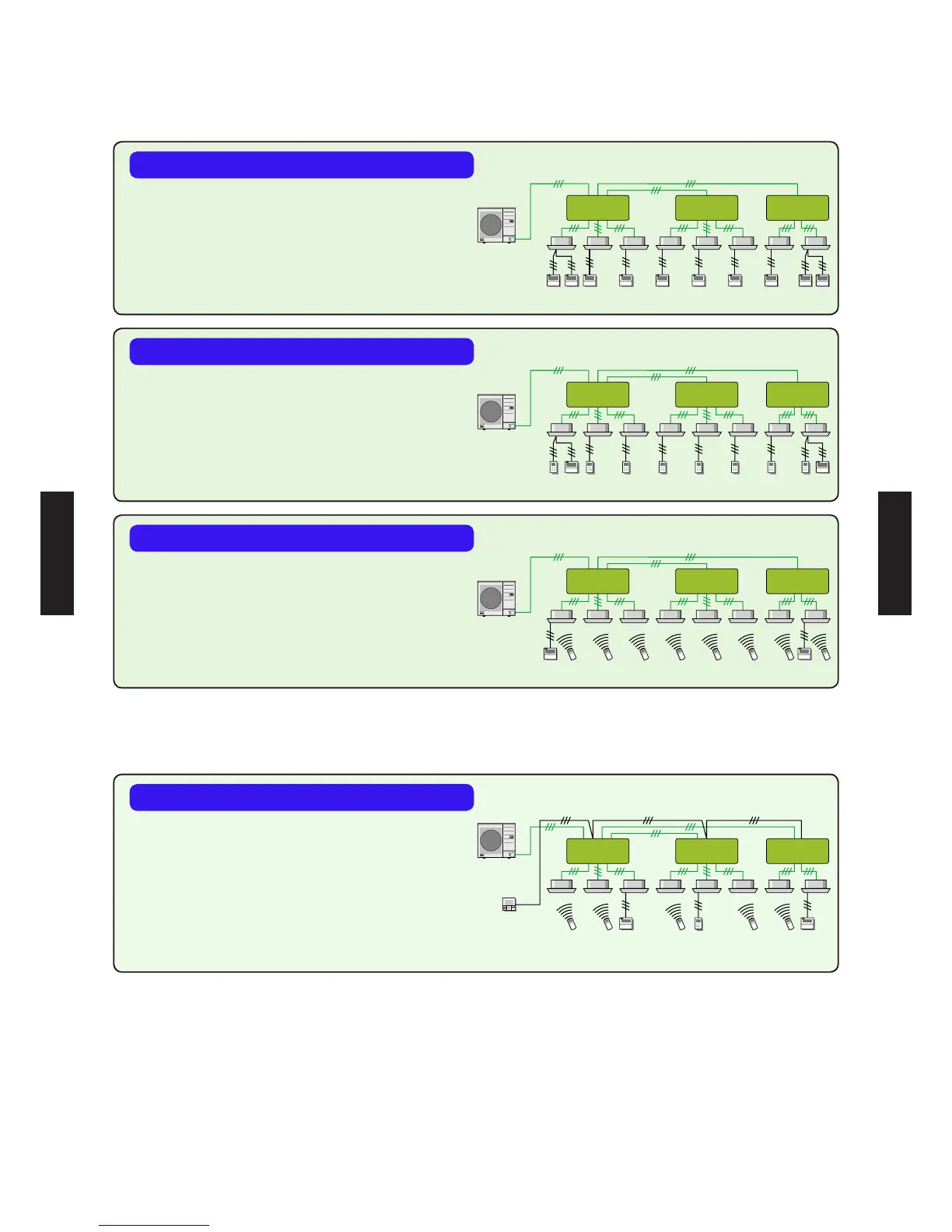

SYSTEM CONFIGURATION EXAMPLES1-3.
INDIVIDUAL CONTROL
Wired Remote Controller
Wireless Remote Controller
Simple Remote Controller
Central Remote Controller
Wired, simple, and wireless remote controllers can
be used jointly.
Two remote controllers can be connected to a single
indoor unit.
Wired, simple, and wireless remote controllers can
be used jointly.
Up to 8 indoor units can be controlled with one
central remote controller.
The central remote controller can be used
simultaneously with wired, simple, and wireless
remote controller.
Only one can be used for one system.
Enables easy control of basic functions by the hotel
or office guest.
Two remote controllers can be connected to a single
indoor unit.
CENTRAL CONTROL
Wired Remote Controller
Outdoor
unit
Branch box
(Primary)
Branch box
(Secondary 1)
Branch box
(Secondary 2)
Outdoor
unit
Branch box
(Primary)
Branch box
(Secondary 1)
Branch box
(Secondary 2)
Simple & Wired Remote Controller
Outdoor
unit
Branch box
(Primary)
Branch box
(Secondary 1)
Branch box
(Secondary 2)
Wireless & Wired Remote Controller
Outdoor
unit
Branch box
(Primary)
Branch box
(Secondary 1)
Branch box
(Secondary 2)
Central Remote
Controller
- (05 - 03) -
CONTROL
SYSTEM
CONTROL
SYSTEM
To Next Page
