6. SYSTEM DESIGN
WIRING SYSTEM1-3.

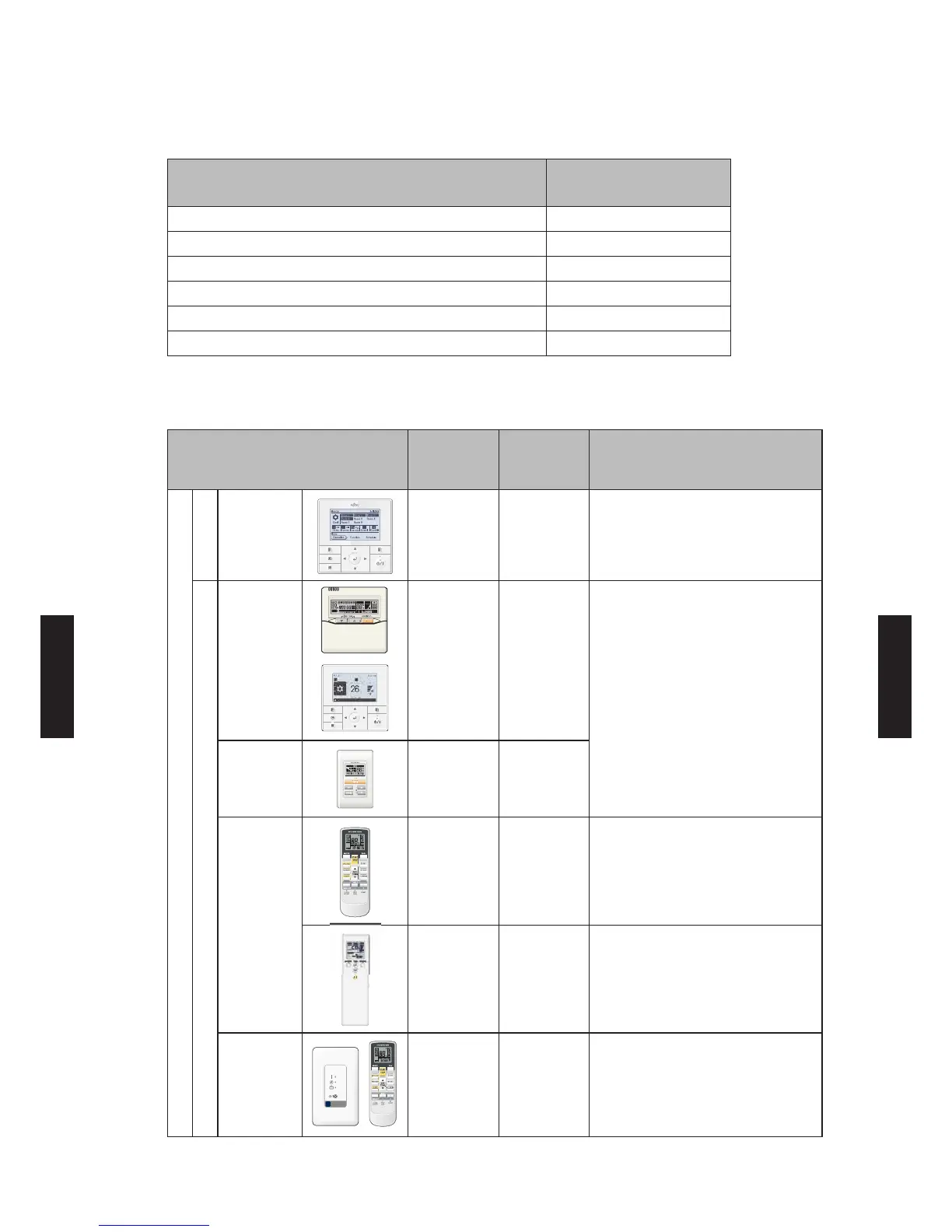

MAXIMUM WIRING LENGTH

Transmission line
Maximum wiring length
m
Between outdoor unit and branch box 75
Between branch box and indoor unit 75
Between branch box and branch box 75
Between branch box and Central remote controller 500
Between indoor unit and Wired R.C. or Simple R.C. 500
Between indoor unit and IR Receiver unit 5
CONTROLLER

Maximum
connectable
units in one
multi system
Individually
controllable
indoor units
Remarks
Controller
Central Control
Central remote
controller
1 8
Individual Control
Wired Remote
Controller
16 (*1) 1
*1: One indoor unit can be connected
to 2 wired remote controllers (Wired
remote controller or Simple remote
controller).
Simple Remote
Controller
16 (*1) 1
Wireless
Remote
Controller
- 1
- 1
IR Receiver
unit
8 (*2) 1
*2: One indoor unit can be connected
to 1 IR receiver unit.
- (06 - 08) -
