12. Group connection
Wiring regulation on the remote controllers in the multi split models are reviewed and allowed for
group connection.
Outdoor unit
Indoor unit

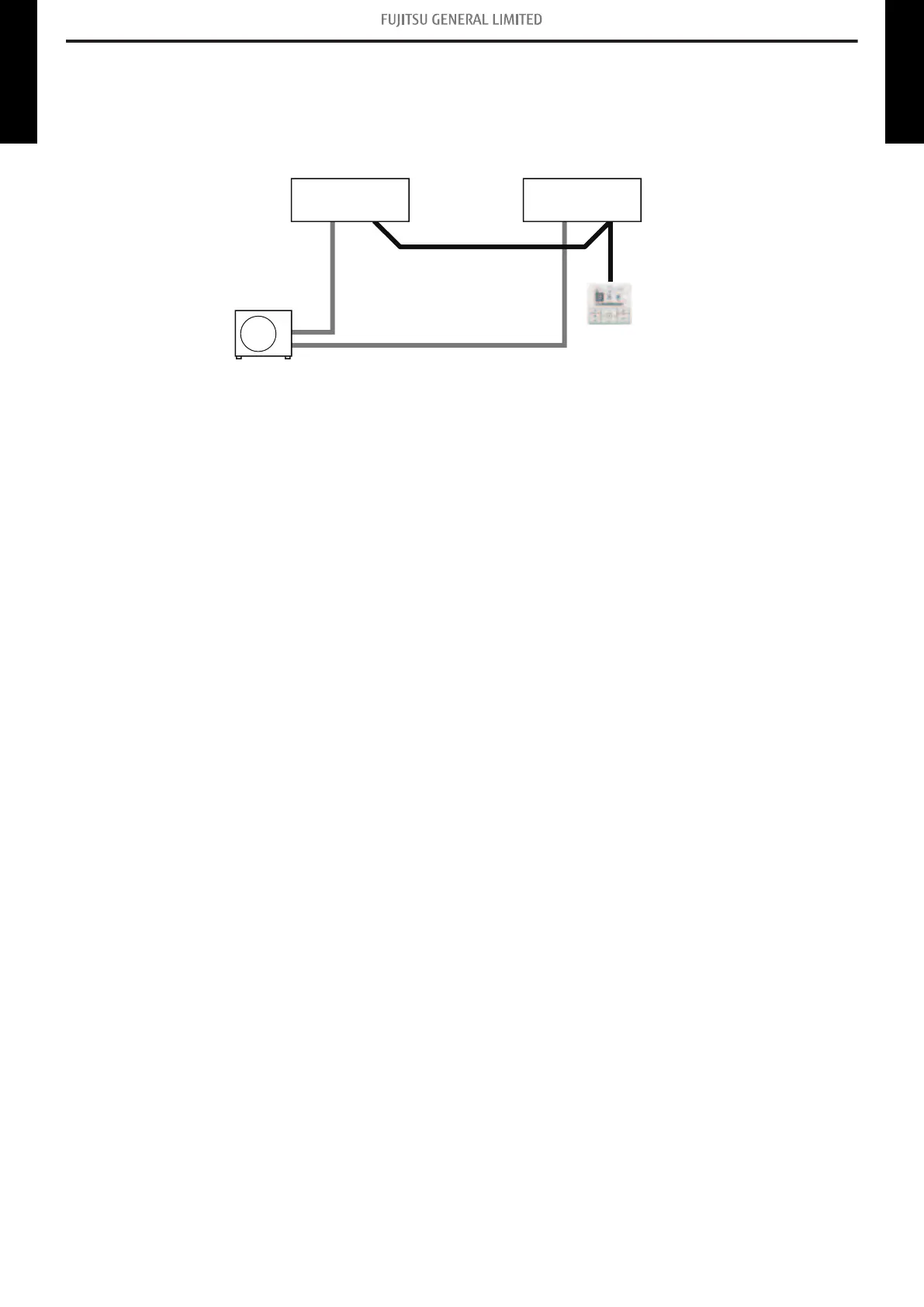

Example of group connection
Indoor unit
*Exterior of each device shown above might be different from the actual one.
NOTES:
• Group connection is applicable for multi system consists of following products that are produced
in 2013 or later:
– ASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RLF1, ASU18RLF, and ASU24RLF in wall
mounted type
– AGU9RLF, AGU12RLF, and AGU15RLF in floor type
• Maximum number of connectable indoor units is depend on the outdoor unit.
- 107 -
