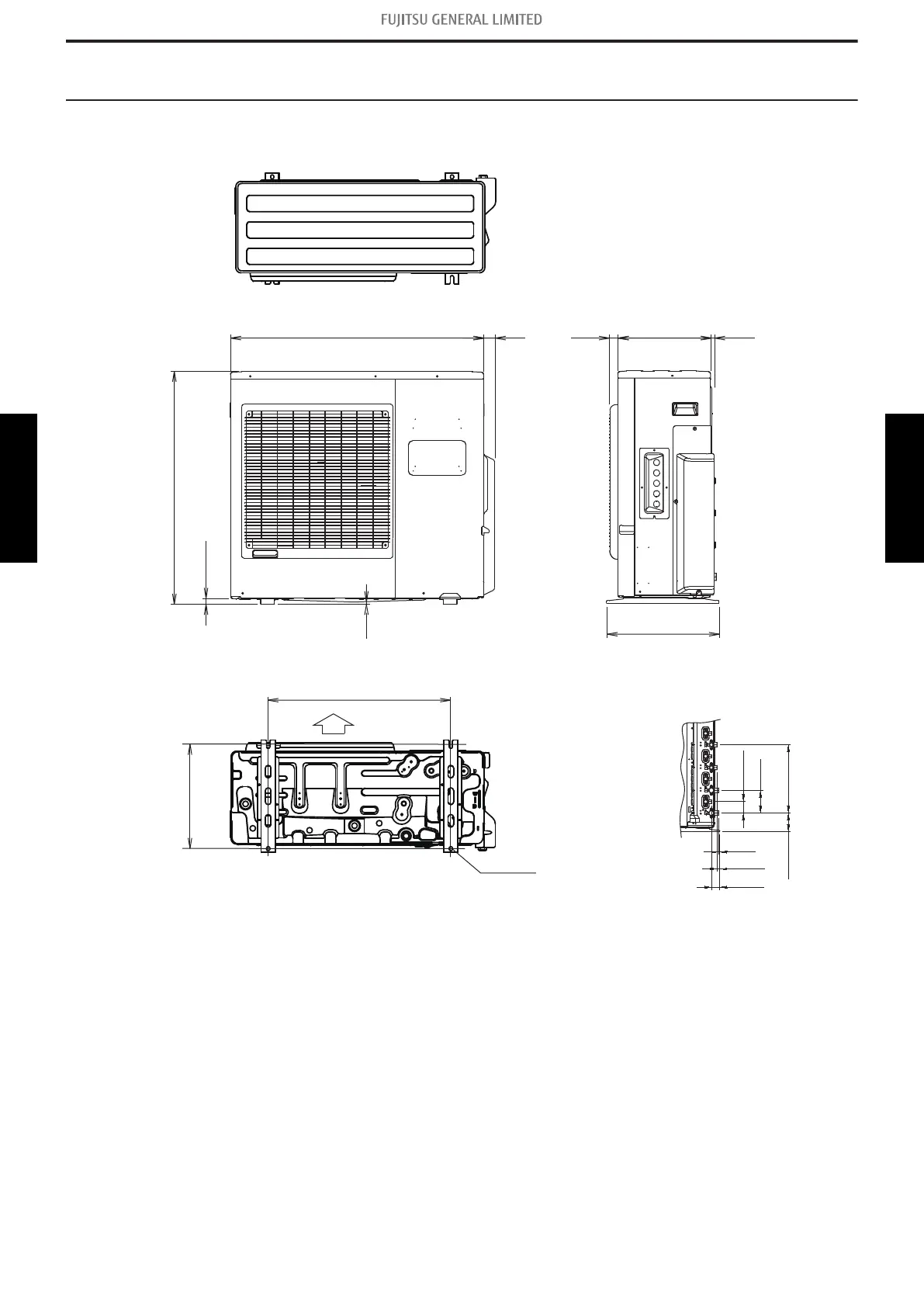

2. Dimensions
2-1. Model: AOU36RLXFZ1
Unit: in (mm)
Top view
Front view
Bottom view
Side view
35-7/16 (900)
32-11/16 (830)
13/16 (21)
14-7/8 (370)
3/8
(9)
1-9/16
(40)
1-1/4
(31)
1/2
(12)
13 (330)
15-3/4 (400)
25-9/16 (650)
4-Ø1/2 (Ø12)
3/16 (5)
2-1/4 (57)
3-11/16 (94)
4-1/2 (114)
13-1/2
(114 x 3 = 342)
1/2 (12)
1-5/8 (41)
Airflow
- 249 -
2-1. Model: AOU36RLXFZ1 2. Dimensions
OUTDOOR UNIT AOU36RLXFZ1 OUTDOOR UNIT AOU36RLXFZ1
