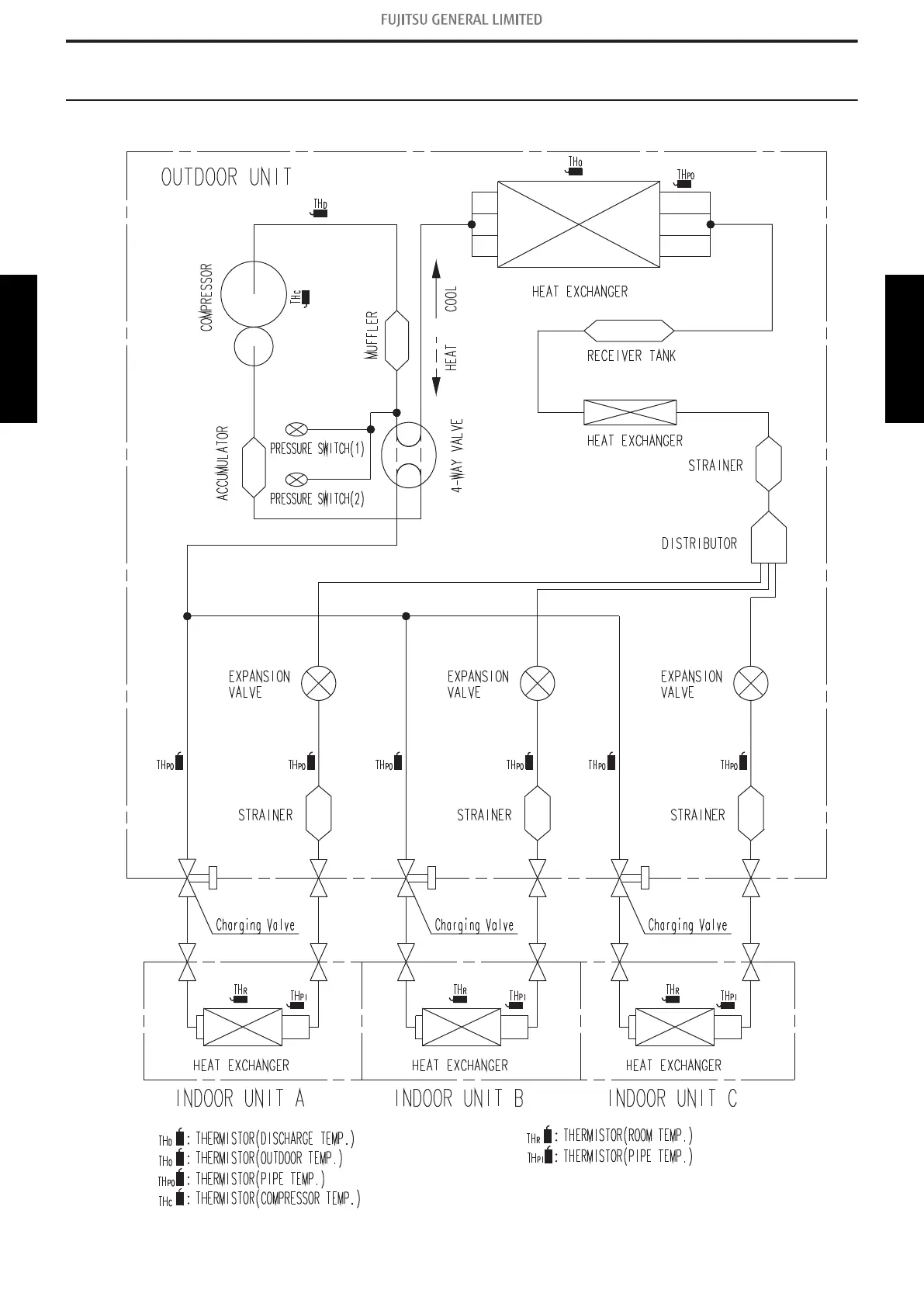

4. Refrigerant circuit

4-1. Model: AOU24RLXFZ

- 211 -

4-1. Model: AOU24RLXFZ 4. Refrigerant circuit

OUTDOOR UNIT

AOU24RLXFZ

OUTDOOR UNIT

AOU24RLXFZ
