Modular RAID Controllers
29
Modular RAID 3Gb/s (SAS1.0)
To install the LSliBBU01/LSliBBU07 remotely to the RAID controller, proceed as
follows:
1. Ground yourself, then remove the LSliBBU01/LSliBBU07 from its package.
2. Secure the LSliBBU01/LSliBBU07 to the server chassis as described in the
server documentation.
3. Insert the battery pack harness connector (at the end of the colored wires)
into the J2 connector (LSliBBU01, see figure 6) or J4 connector (LSliBBU07,
see figure 7) on the bottom of the iBBU.
4. Connect the cable from the cable connector (for LSliBBU01 see figure 6 or
for LSliBBU07 see figure 7) on the iBBU to the BBU connector on the RAID
controller.
I The connectors are marked with a black dot to indicate pin 1.

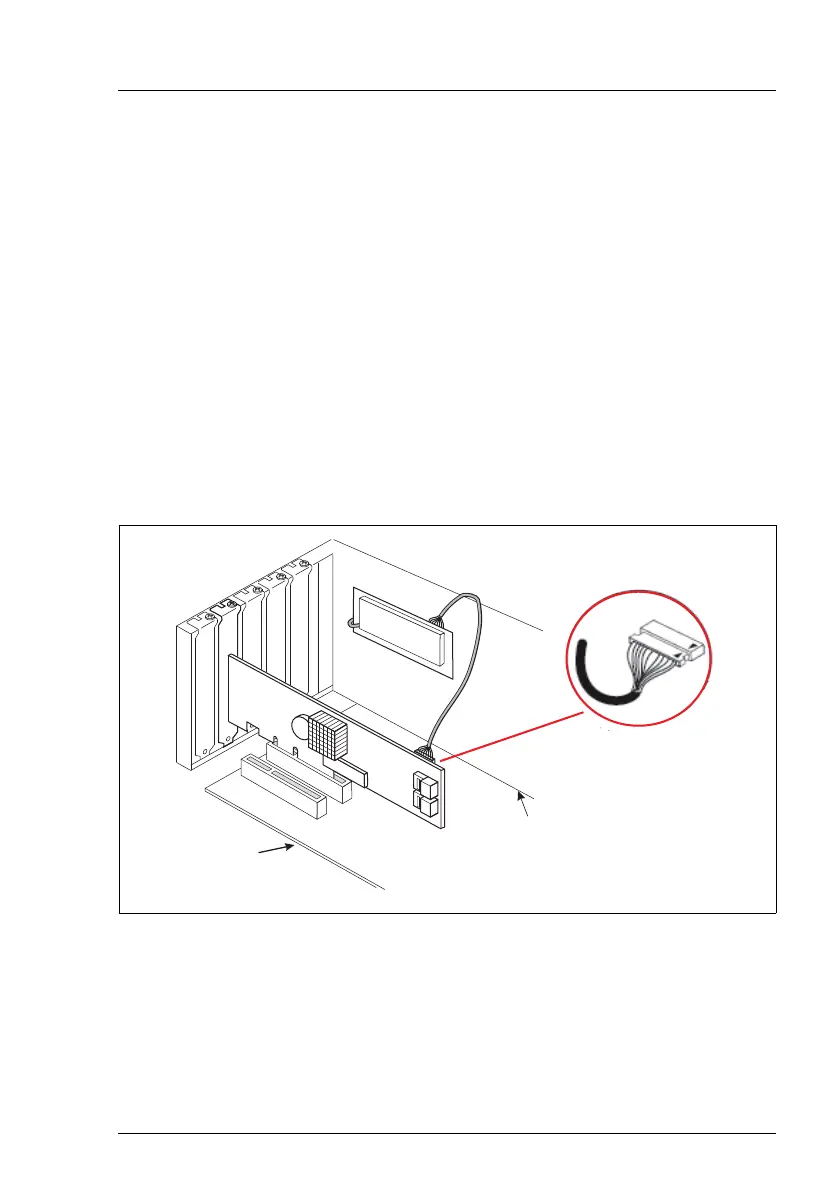

Figure 8: Example: Installing the iBBU01 in a server chassis
PIN1
Edge of Motherboard
Edge of
Motherboard
To Next Page
