Modular RAID 6Gb/s (SAS2.0)
4.5.2 Controller versions
4.5.3 Connectors and indicators

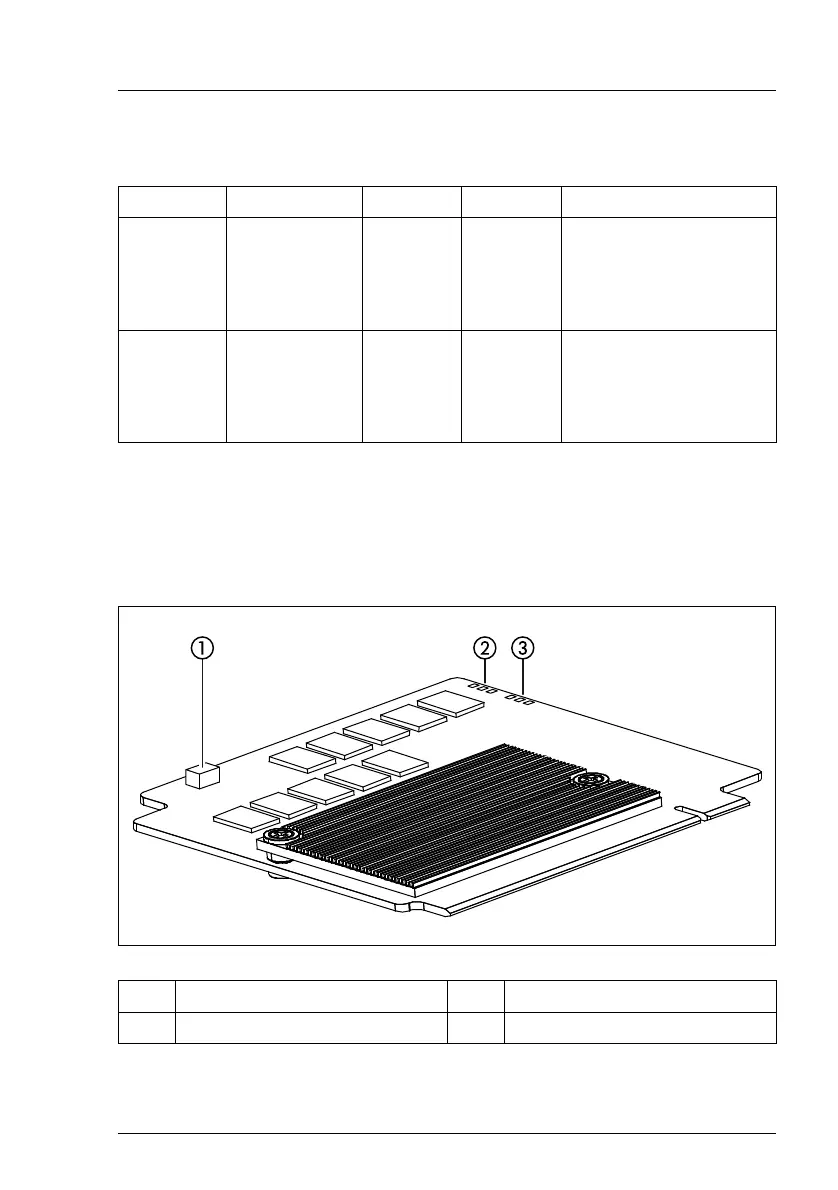

The following figure shows the location of the connectors and indicators on the
SAS RAID controller.
Name Chip PCIe Cache No. of SAS channels
S26361-
D2816-Ax
LSI SAS2208 PCIe 2.0 512 MB
2+2 ports for Storage
Blade Connection
2 ports for Blade internal
HDD Connection
S26361-
D2816-Cx
LSI SAS2208 PCIe 3.0 512 MB
2+2 ports for Storage
Blade Connection
2 ports for Blade internal
HDD Connection
1 FBU connector 3 Indicator LEDs
2 TFM indicator LEDs
