|Batteries |
Battery release latch Battery
5. Turn the controller canister over to confirm that the battery is installed correctly.

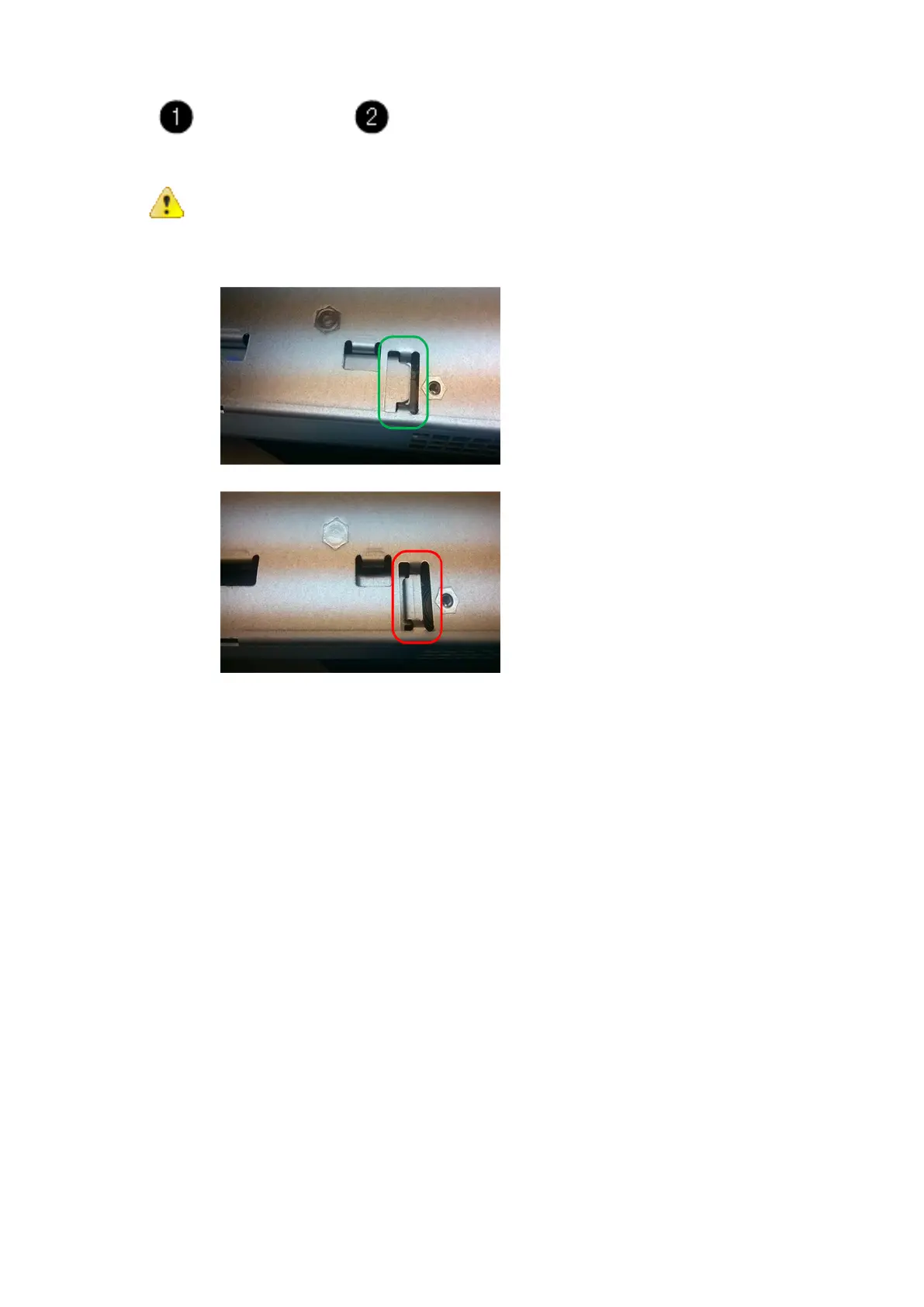

Attention: Possible hardware damage – The metal flange at the front of the battery must be
completely inserted into the slot on the controller canister (as shown in the first figure). If the
battery is not installed correctly (as shown in the second figure), the metal flange might contact
the controller board, causing damage to the controller when you apply power.
• Correct – The battery's metal flange is completely inserted in the slot on the controller:
• Incorrect – The battery's metal flange is not inserted into the slot on the controller:
What to do next
Go to Re-install controller canister.
Re-install controller canister
Reinstall the controller canister into the controller shelf after installing the new battery.
Procedure
1. You reinstall the cover on the controller canister by sliding the cover from back to front until the button
clicks.
2. Turn the controller canister over, so that the removable cover faces down.
3. With the cam handle in the open position, slide the controller canister all the way into the controller shelf.
10
