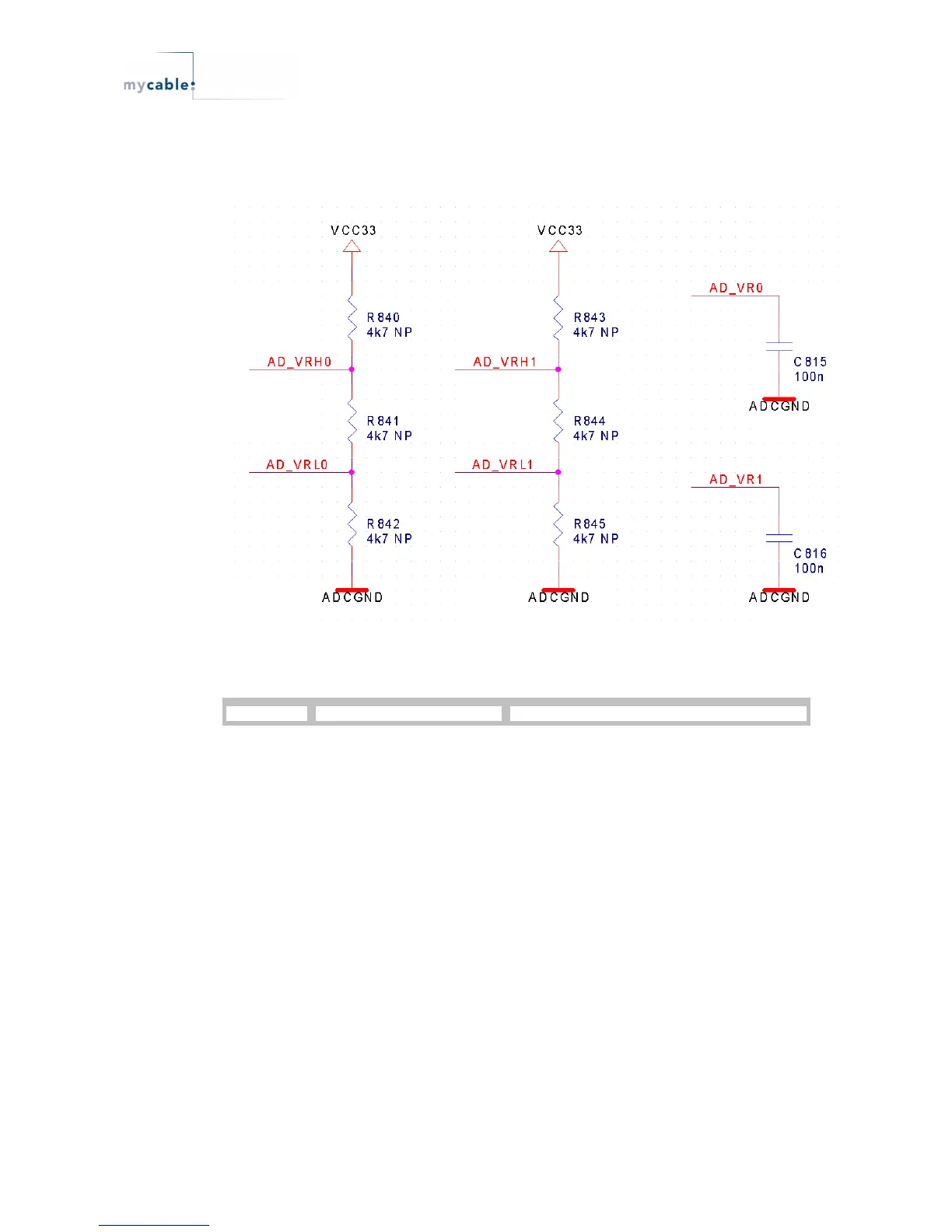

Following table shows the assignment of pins, signals and function from the connector X805.

Pin Signal Function

1 AD_VRH0

2 AD_VRL0

3 AD_VIN0

4 AD_VR0

5 AD_VRH1

6 AD_VRL1

7 AD_VIN1

8 AD_VINR1

9 AD_VIN2

10 AD_VIN3

11 ADCGND ADC Ground

12 ADCGND ADC Ground

Tab. 2-5: Pin assignment of connector X805
