2.2.2 XXSvideo-D Interface

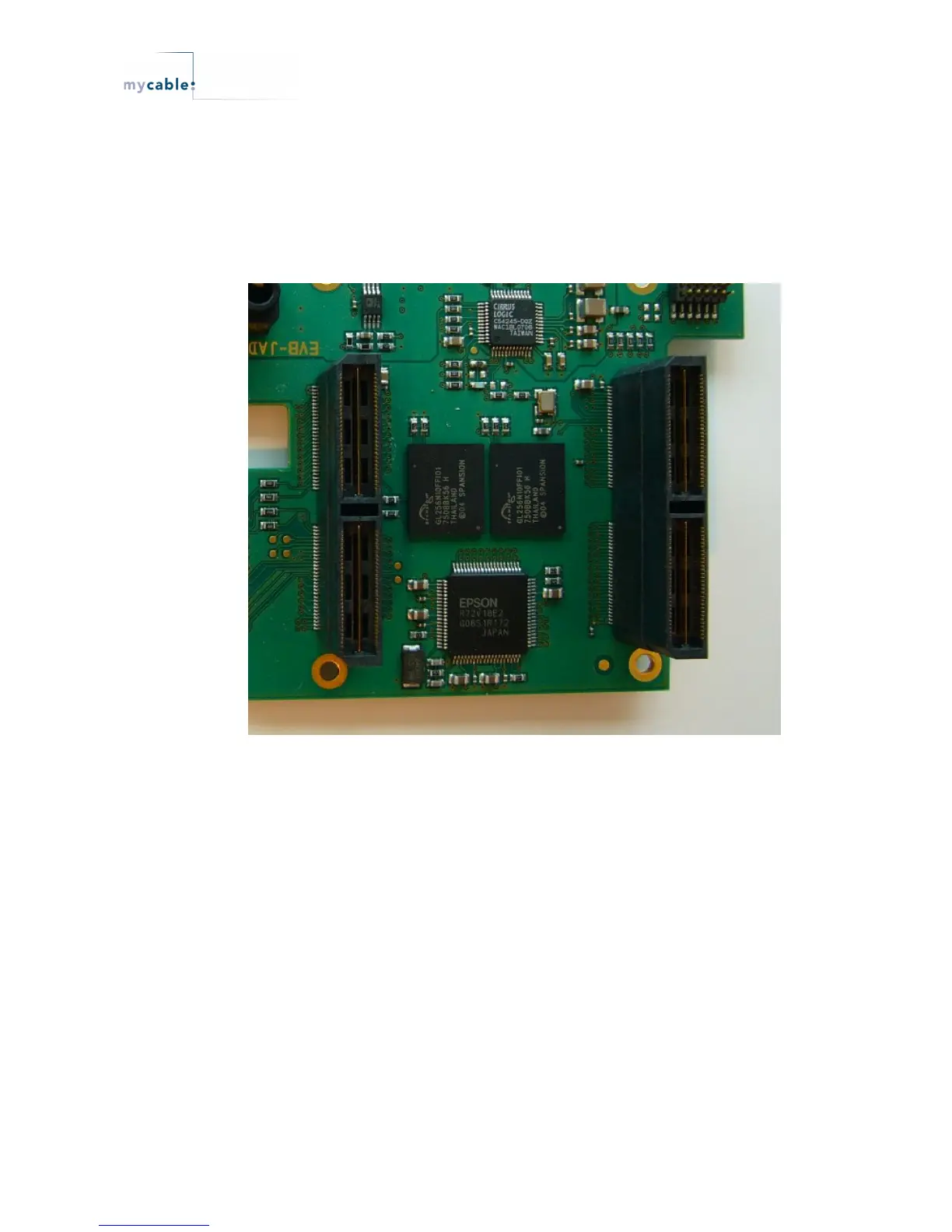

Pic. 2-6: XXSvideo-D interface
The 120-pin 0.5 mm connectors X101 ( CPU signals side ) and X201 ( IO signals side ) QTH-
060-05-F-D-A from Samtec are the interfaces to the XXSvideo-D module with the JADE-D and
memory.
Detailed information on the XXSvideo-D module see the manual to this board.
Do not plug the XXSvideo-D module or EVB-JADE-D when the power supply is on !
Following tables shows the assignment from pins, signals and function of these connectors.
Mostly the function is no further elucidated and only the name of the connected pin of the
JADE-D is stated. For further details see the datasheet from the JADE-D and the schematic of
the XXSvideo-D module.
The signal order is the result of optimisation for a good layout of the XXSvideo-D module.
