2.2.3 XXSvideo Interface

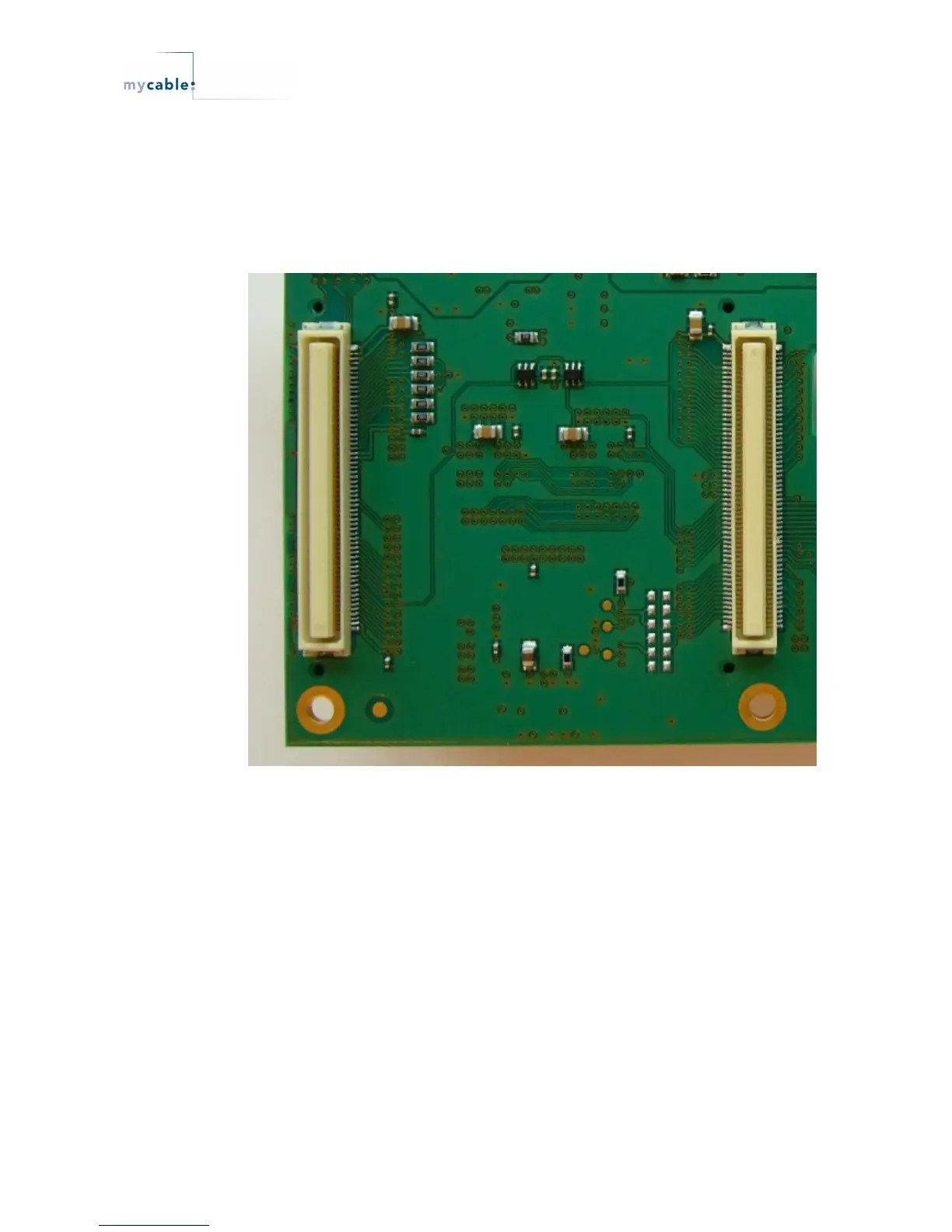

Pic. 2-7: XXSvideo interface
The connectors X301 ( CPU signals side ) and X401 ( I/O signals side ) DF17(3.0)-120DS-
0.5V(51) from Hirose are the interfaces to the JADE Evaluation board.
These interfaces are specified for the XXSvideo module with the JADE Evaluation board.
Mostly the function is no further elucidated and only the name of the connected pin of the JADE
is stated. For further details see the datasheet from the JADE and the schematic of the
XXSvideo module.
Signals with the name JADE_IO_Gn are connected to multi function pins of the JADE.
N indicate the function group.
Following table shows the assignment from pins, signals and function of connector X301 CPU
signals side:
