2.2.5 I2C and Host SPI Interface

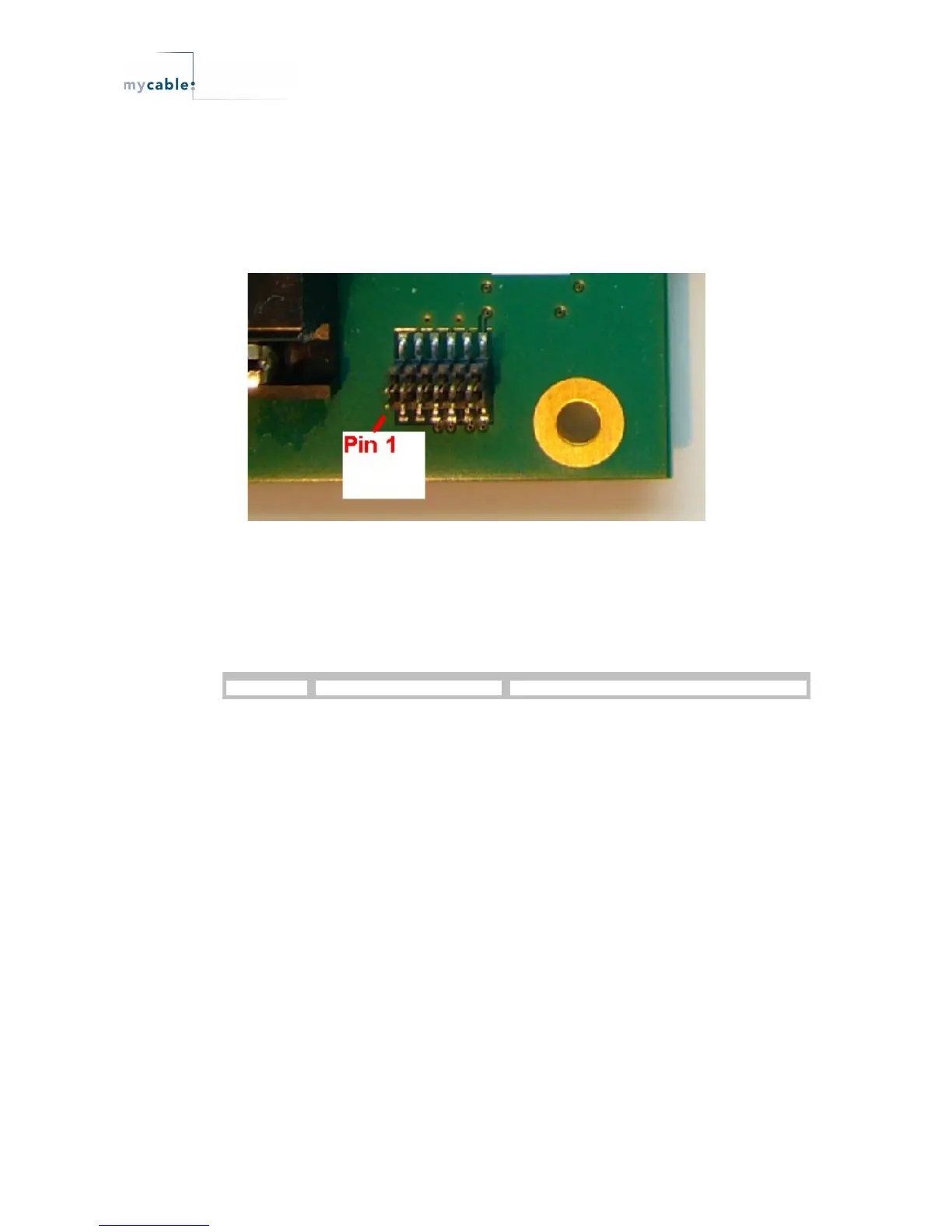

Pic. 2-9: I2C and Host SPI interface, X806
The pins of the I2C 1and Host SPI interface from the JADE-D on the XXSvideo-D are available
at connector X806, FTSH-106-01-L-DV from Samtec.
Following table shows the assignment of pins, signals and function from the connector X806.
Pin Signal Function
1 - Not connected
2 I2C_SDA1 SDA from I2C interface 1
3 I2C_SCL1 SCL from I2C interface 1
4 GND Ground
5 HOST_SPI_SCK
6 GND Ground
7 HOST_SPI_DI
8 GND Ground
9 HOST_SPI_DO
10 GND Ground
11 HOST_SPI_SS
12 VCC33 + 3.3 V output
Tab. 2-6: Pin assignment of connector X805
