2.2.10 Video Output

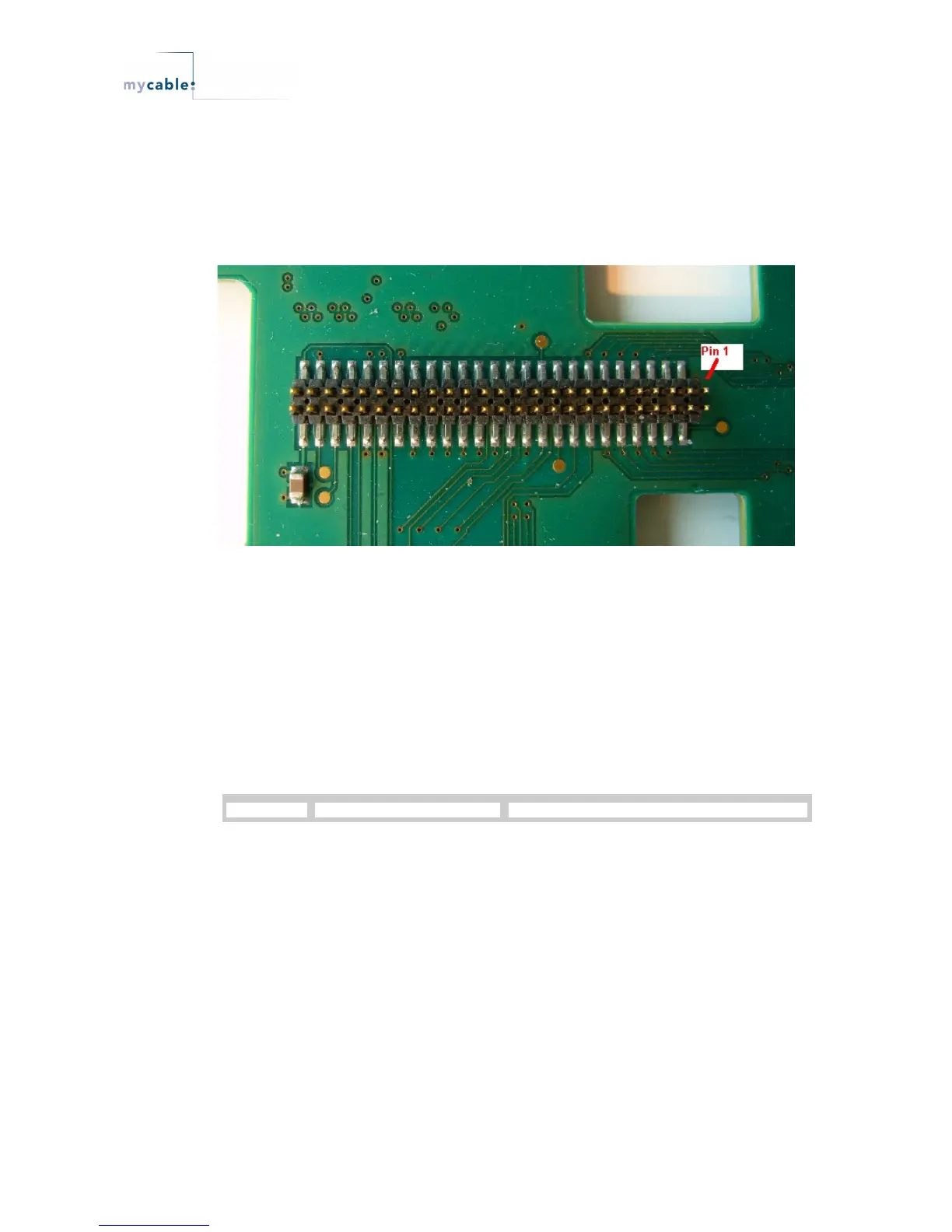

Pic. 2-12: Video output connector, X804
The video output 0 signals from the JADE-D are connected to connector X804, FTSH-125-01-L-
DV from Samtec, for direct interconnect to column and row drivers via LVTTL or RSDS from a
display.
Additional these signals are connected to the JADE Evaluation board connector X301 over 0
Ohm resistors. So the RGB interface 0 on the JADE Evaluation board can be used.
If the TCON interface will be used and the long connection to the JADE Evaluation board make
disruptions remove the 0 Ohm resistors.
On revision PA3 the pin 3 to 14 have another order.
Pin Signal Function
1 GND Ground
2 NC Testpoint 801
3 DISP_N_R_11 DOUTB0_7
4 DISP_P_R_11 DOUTB0_6
5 DISP_N_R_10 DOUTB0_5
6 DISP_P_R_10 DOUTB0_4
7 DISP_N_R_9 DOUTB0_3
8 DISP_P_R_9 DOUTB0_2
9 DISP_N_R_7 DOUTG0_7
10 DISP_P_R_7 DOUTG0_6
11 DISP_N_R_5 DOUTG0_5
