2.5 Mechanical Dimensions
The EVB JADE-D Interface board has a size of 142.0 x 100.0 mm.
Pictures from mechanical dimensions with a better resolution are available as separate pdf
documents.

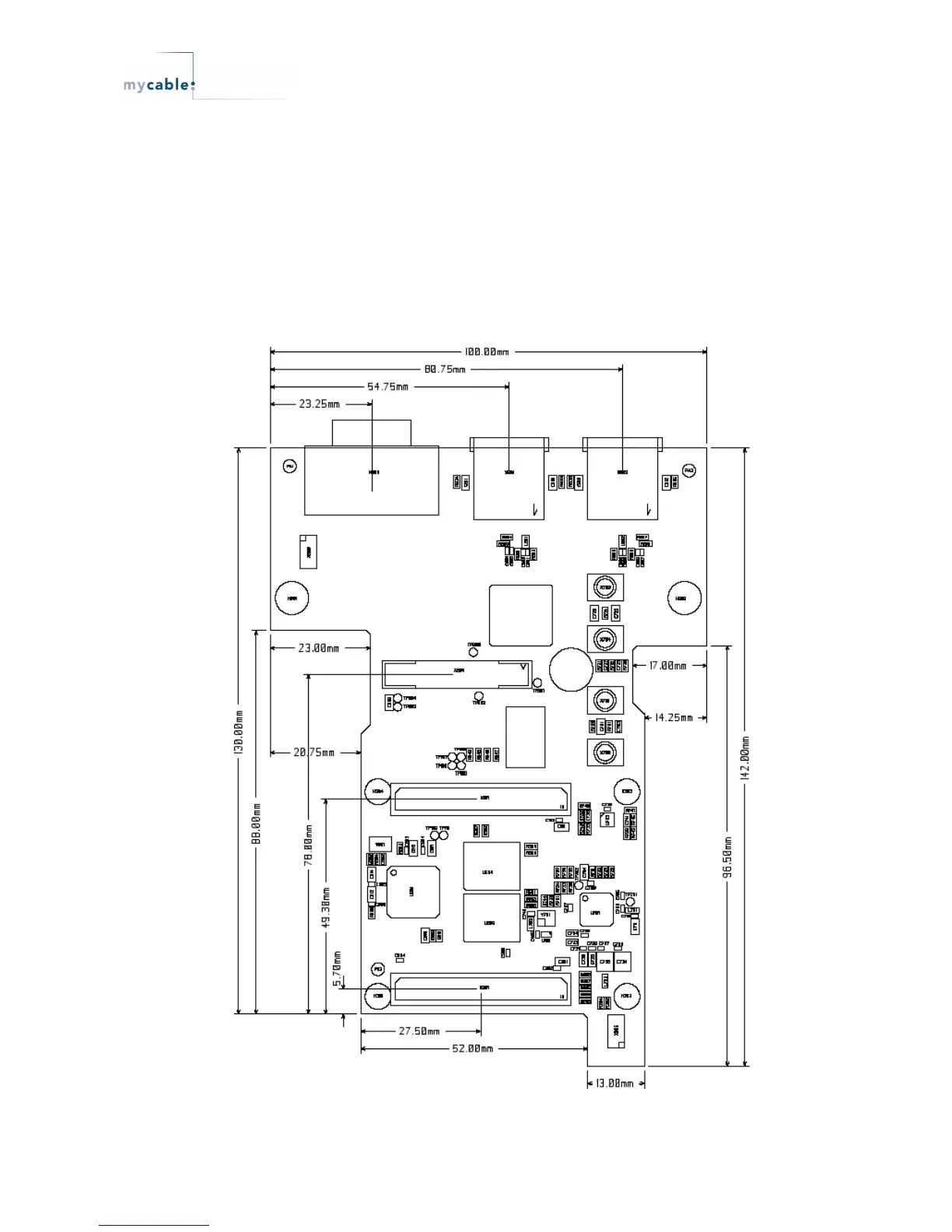

Pic. 2-8: EVB JADE-D Interface board mechanical dimensions, top side
