Fujitsu fi-4340C - Video Interface Board

● 9 - 4

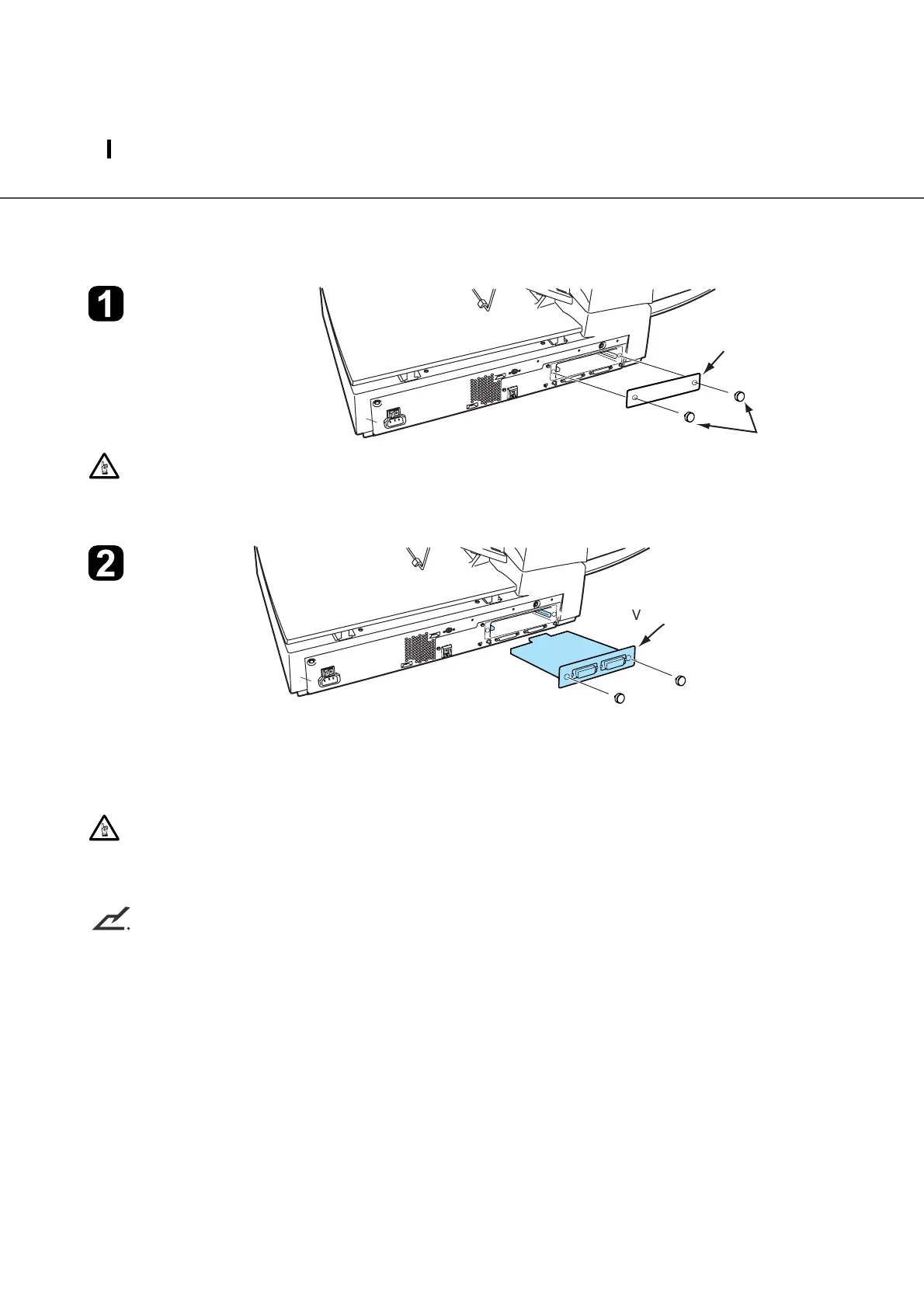

■ How to Install the VIDEO INTERFACE BOARD
Loosen the two
screws to
remove the
plate.
CAUTION
Turn Off the power before removing the Third Party slot plate.
Insert the board
along the rails
of the third
party slot. Make
sure that the
connector is
connected
securely.
Secure the
board with two
screws.
CAUTION
Protective measures are required to prevent damage from static electricity.
NOTICE
When the scanner power is turned On again, the scanner automatically recognizes the video
interface board.
Plate
Screws

VIDEO INTERFACE BOARD
VIDEO INTERFACE BOARD
