Getting started
Horizontal operating position
If you wish to operate the device in the horizontal operating position, use
the two feet supplied for horizontal operating position.
Mount the feet only on the device side shown in the diagrams.
Proceed as follows to prepare the device for the horizontal operating position:
HorizontaloperatingpositionOperatingposition, horizontalBasefeet
► Disconnect the cables if required.
► Lay the device on its right
side as shown, on a stable, level and clean surface.
2
1
1
3
3
3
3

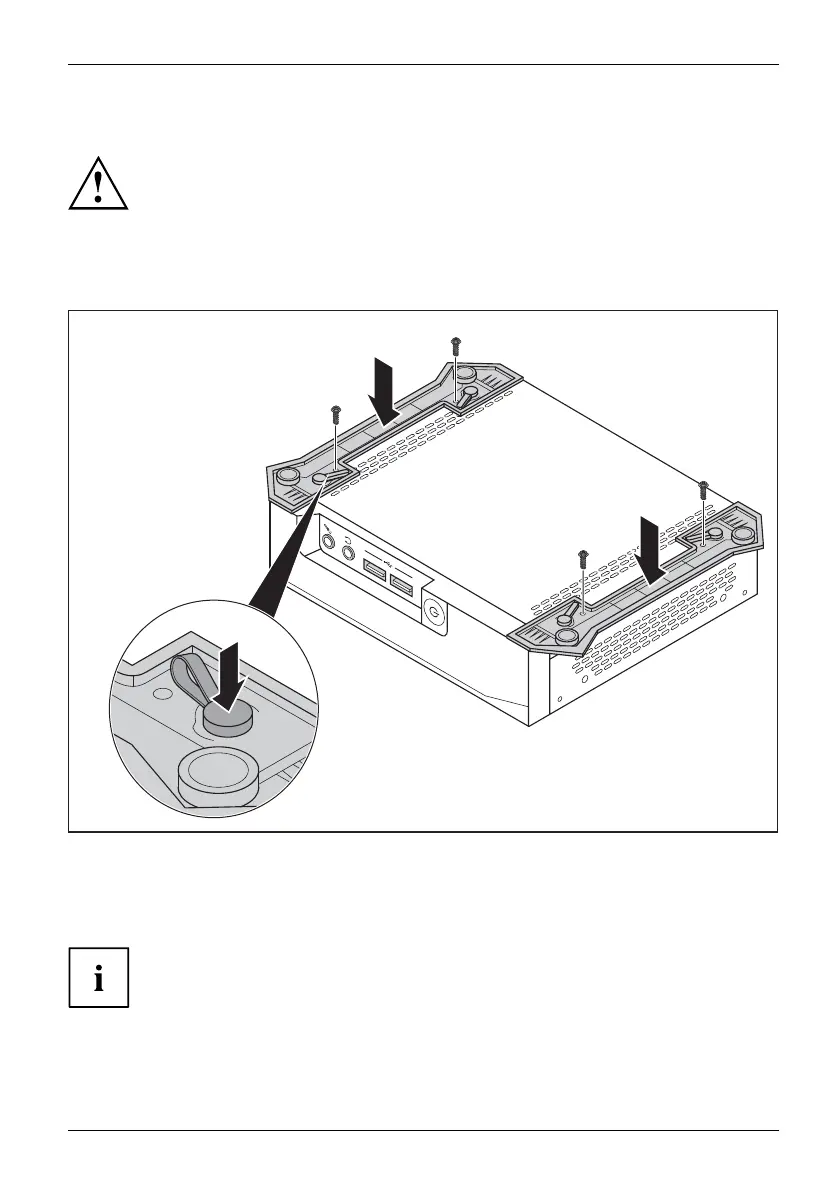

► Fit the feet on the housing (1). Make sure that you align the 4 clips (2) on the
feet with the corresponding openings in the housing.
► To fix the feet, press the clips in the direction o f the arrow (2) un til they
engage noticeably in t he opening s.
To protect your device against unauthorised removal of the feet, the feet
can also be secured with two screws, each of type M2.5x5 mm. These
are not included in the delivery scope.
► Secure the feet with the sc rews (3).
Fujitsu 17
