Removing and installing com ponents
during servicing
Installing a m emory module
2
a
1

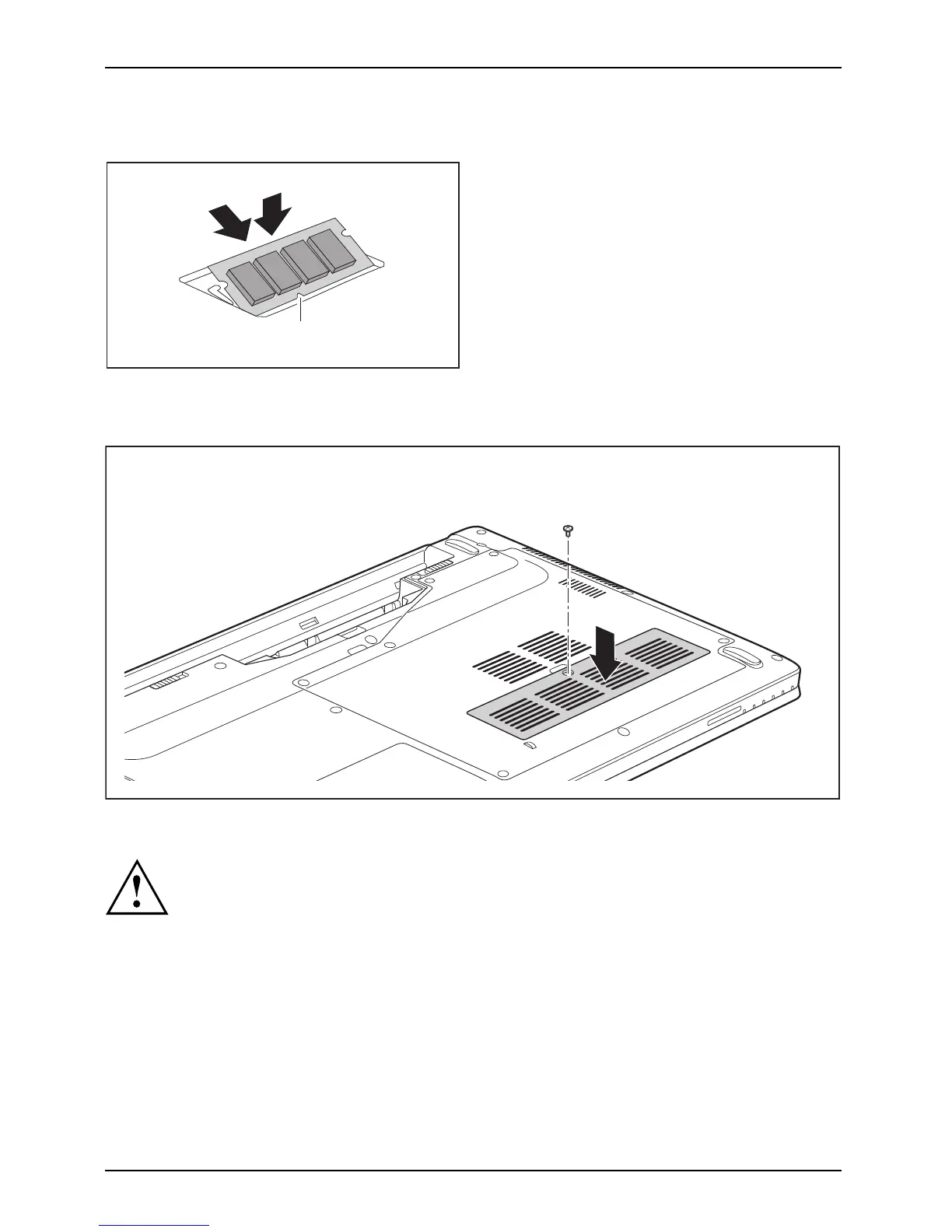

► Insert the mem ory module with the contacts
and the recess ( a) f acing the slot ( 1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
Securing the cover
1
2
► Place the cover into its installation position in the direction of the arrow (1).
When installing the cover, you must use the correct screws.
If you install the wrong screws, compon ents may be damaged.
► Secure the cover using the screw (2).
