84 C120-H007-08EN
CHAPTER 6 Power Supply Facilities
6.5.3 Distribution panel structure
A distribution panel uses an output terminal strip to connect a power cable to each

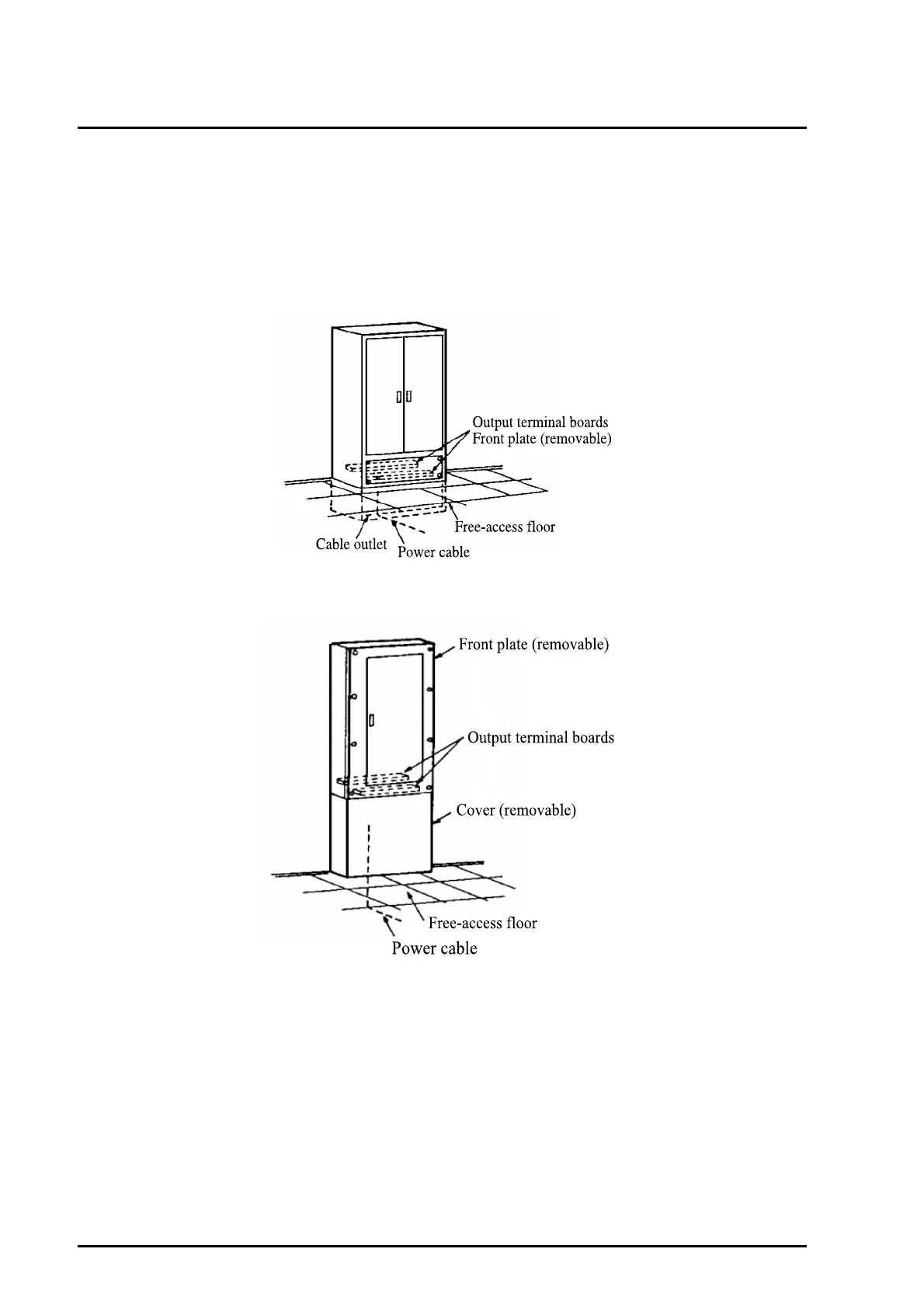

device. Figure 6.7 and Figure 6.8 show typical distribution panel setups having
output terminal boards.
Figure 6.7 Distribution panel (free-standing)
Figure 6.8 Distribution panel (wall-mounted)
The distribution panel structures and output terminal boards are described below:
(1) Output terminal board position
Normally, breakers are in the upper part of the distribution panel, and output terminal
boards are in the lower part so that connecting cables can be easily drawn from the
output terminal boards to under the free-access floor.
