CHAPTER 4 Air Conditioning
An air conditioner installed in the duct blowing setup should include a cooling coil, a
heater for the winter and temperature control, a humidifier, and a filter.

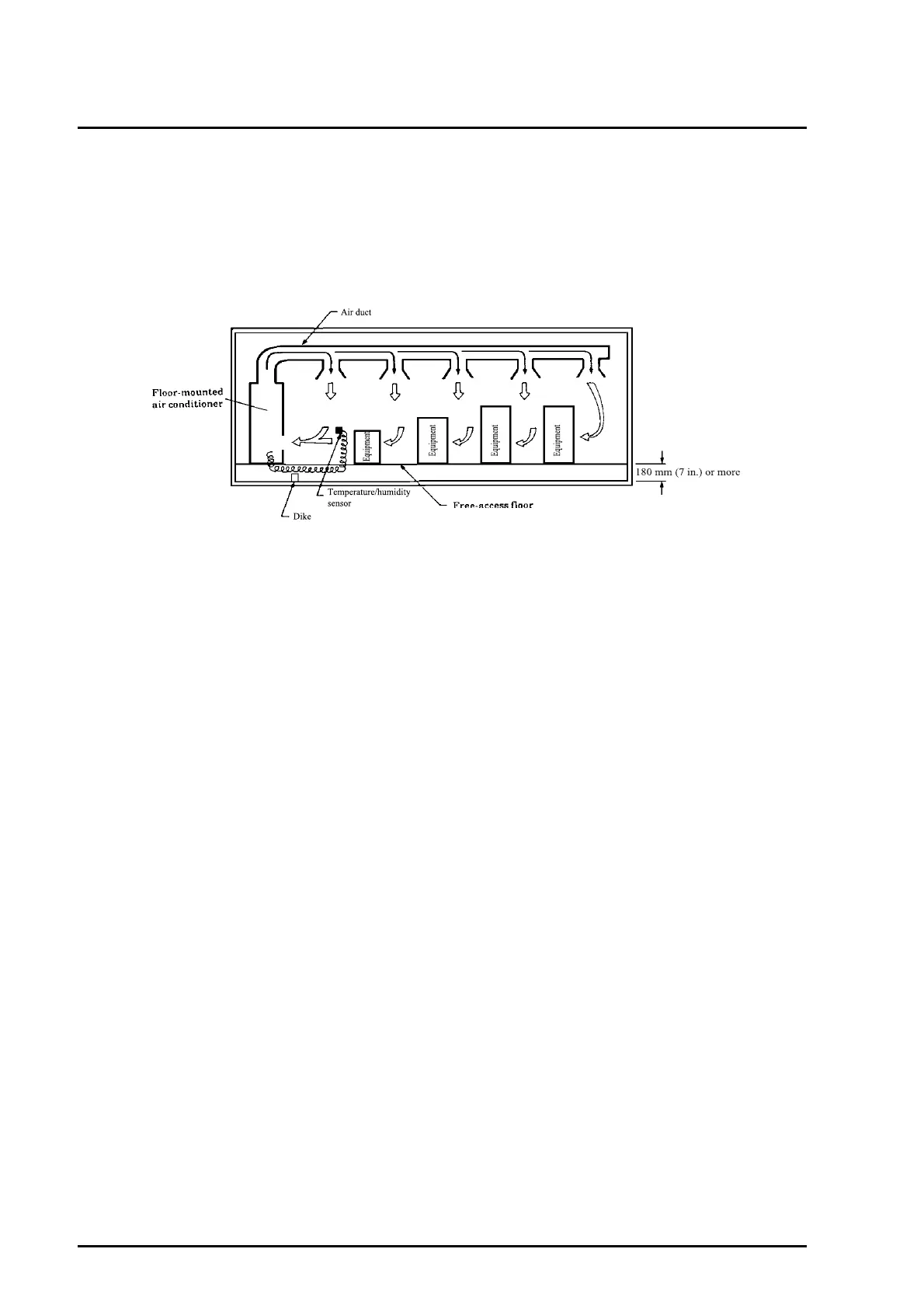

Figure 4.2 shows a schematic view of the duct blowing setup.
Figure 4.2 Duct blowing setup
4.2.3 Underfloor ventilation
In the underfloor ventilation setup, air blown out of the air conditioner is fed into the
clearance between the free-access floor and the base floor, and is blown through
openings in the free-access floor into the space at the bottom of the server system or
the surrounding space.
This setup is useful in the following cases:
 Larger server systems including high heat dissipation volume unit(s)
 Intricate layout including tall equipment
