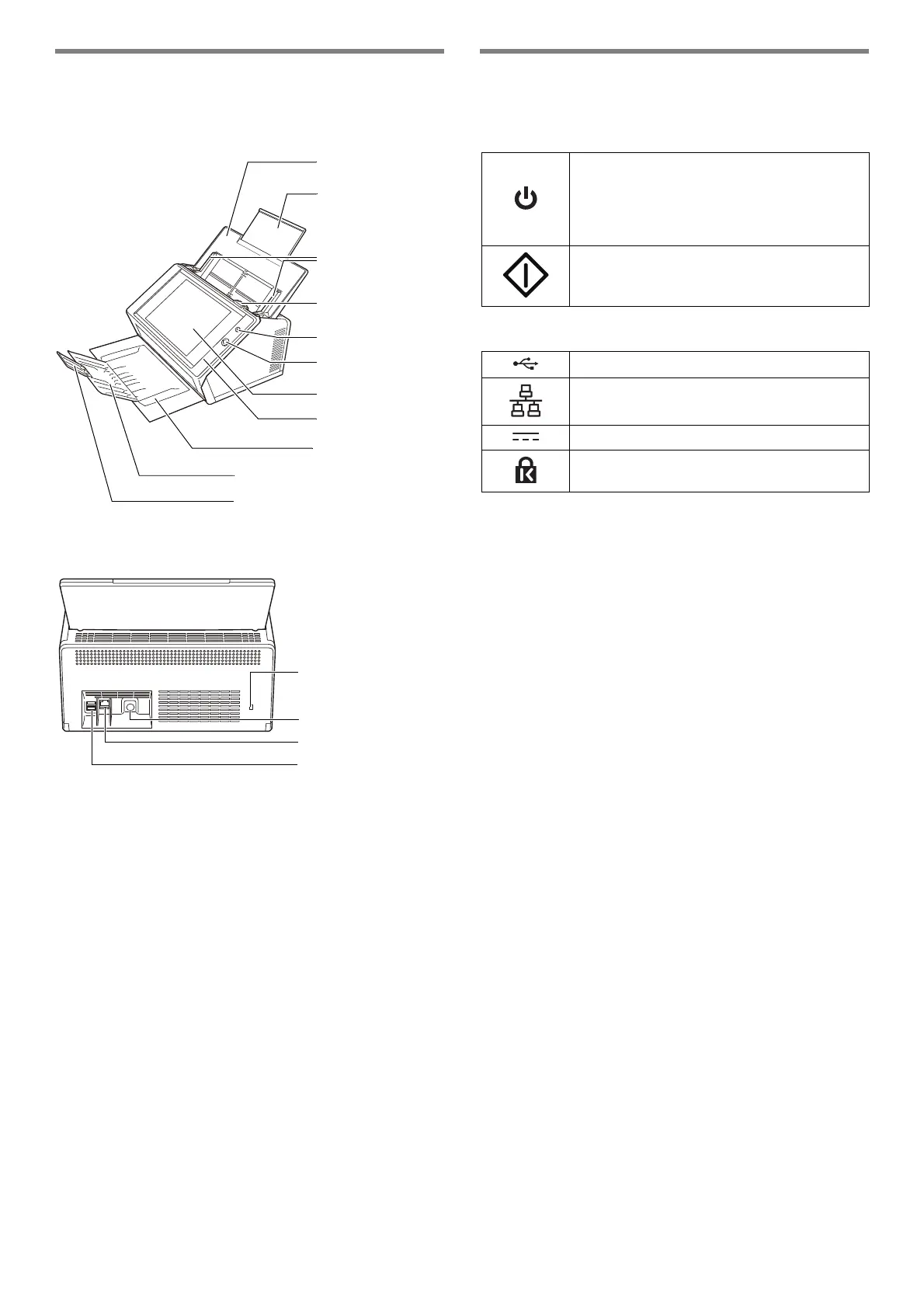

1.3 Part Names
This section explains names of the scanner parts.
■ Front view
■ Rear view
1.4 Signs on the Scanner
This section describes the signs on the scanner.
■ Front
■ Rear
Side guides
ADF paper chute
Stacker
Touch panel
Scan button
Power button
Cover release
catch
LCD cover
Extension
Stacker extension 1
Stacker extension 2
Security cable slot
Power connector
LAN connector
USB connector
Turns the power of the scanner on/off.
Note that this button is used to power off
the scanner only in an emergency.
For the usual way of powering off, refer to
the Operator's Guide.
Starts scanning.
Used to connect a USB device.
Used to connect a LAN connector.
Used to connect a DC power supply.
Used to connect an anti-theft security
cable.
