Fujitsu PRIMERGY CX2550 M4

32 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

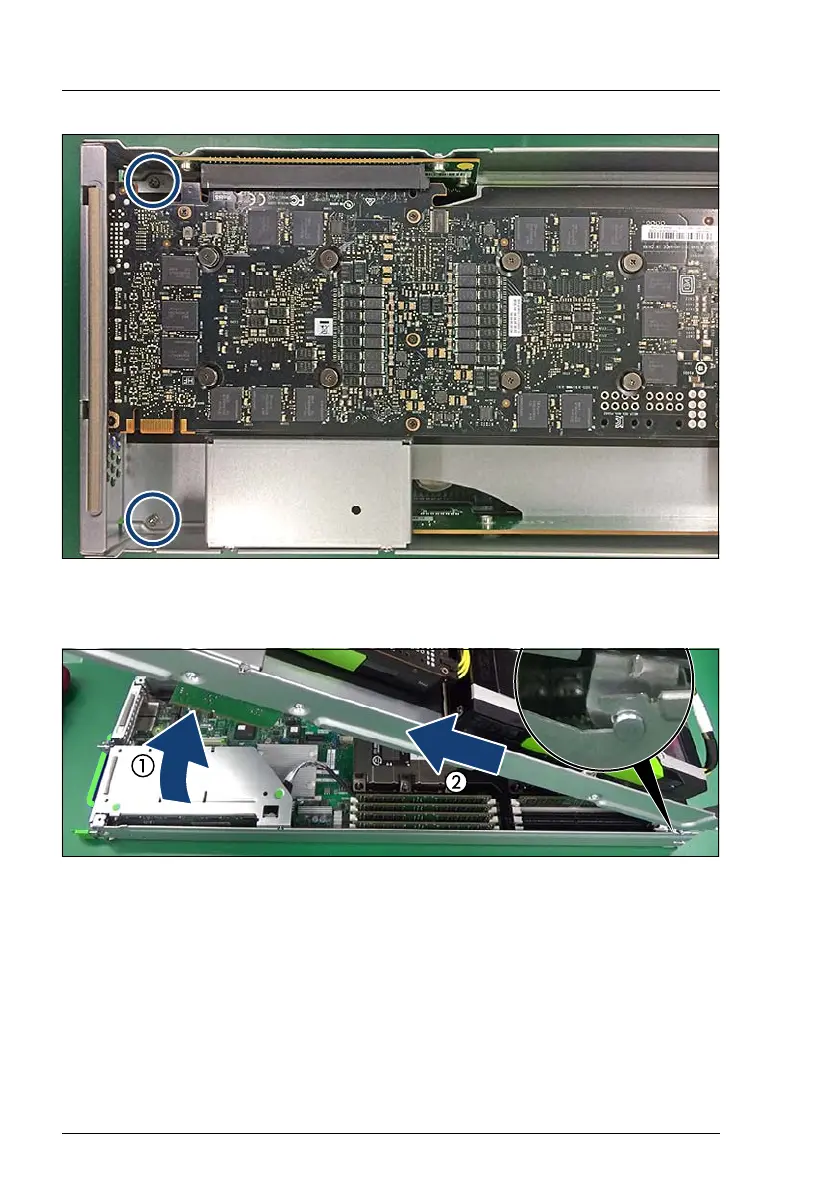

Figure 28: Removing the SXM2 extension tray (A)
Ê Remove the two screws (see circles).
Figure 29: Removing the SXM2 extension tray (B)
Ê Swivel the SXM2 extension tray up (1) and remove it from the system
tray (2).
