Fujitsu PRIMERGY CX2550 M4 Disassembly And Recycling Document

CX400 M4 Disassembly and Recycling Instructions 33
Disassembly and recycling
Removing LC kit
Removing LC from SXM2 modules 3 and 4:

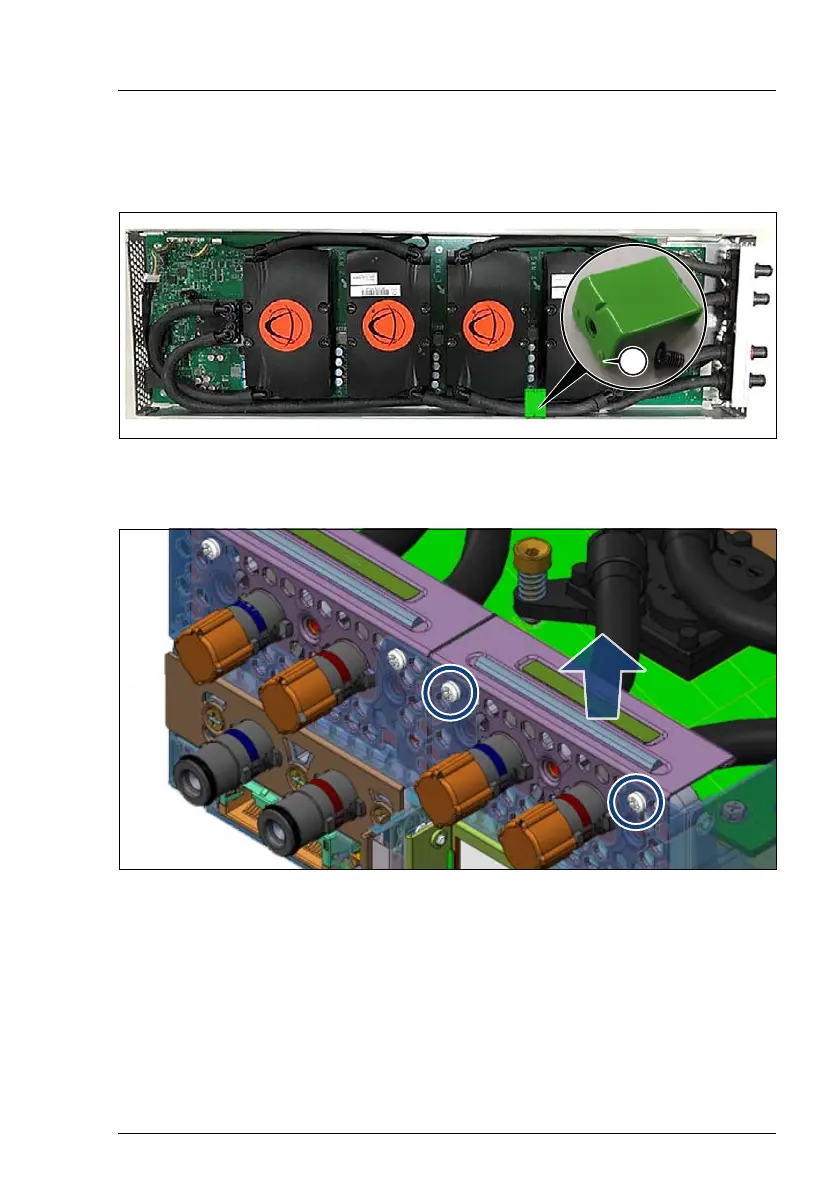

Figure 30: Removing the flexible tube fixation bracket
Ê Remove the screw (A) and remove the flexible tube fixation bracket.
Figure 31: Loosening and lifting up the LC bracket
Ê Loosen the two screws (see circles) of the LC bracket and lift up the LC
bracket with tubes (see arrow).
A
