50 Operating Manual
TX1310 M1
Starting up and operation
6.2.2 Rear of server
6.2.2.1 Indicators on the connector panel: LAN indicators

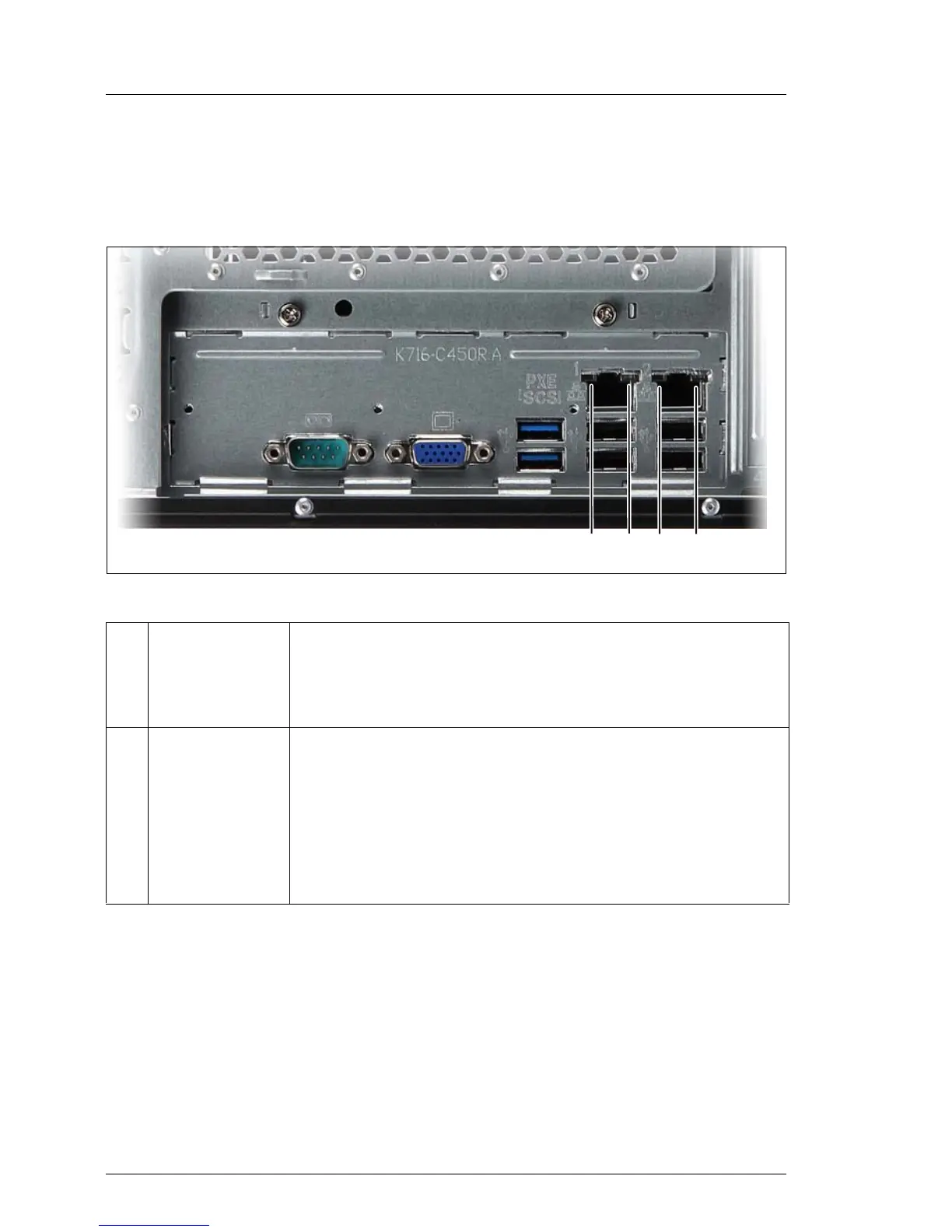

Figure 6: Indicators on the connector panel: LAN indicators
1LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
햲 햳
햲 햳
