52
Operating Manual
TX1320
M3
Hardware installation
Placing the server on the stabilizers

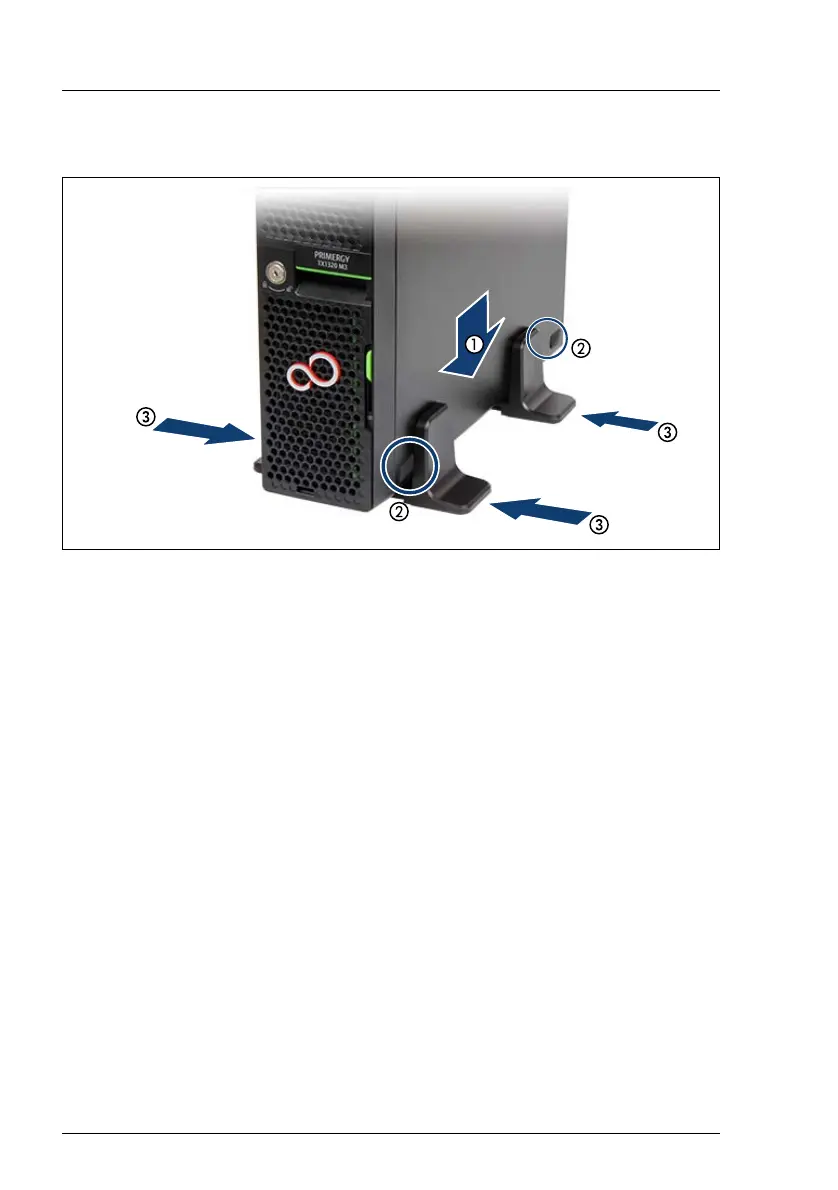

Figure 4: Placing the server
on stabilizers
Ê
Place the server on the stabili
zers
(1).
Position the stabil
izers between the rubber feet
(2).
Ê
Press the st
abilizers together
(3).
51
53
