TX1320 M3 Operating Manual 61
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 33.
6.1 Access to the drives
Opening the drive cover

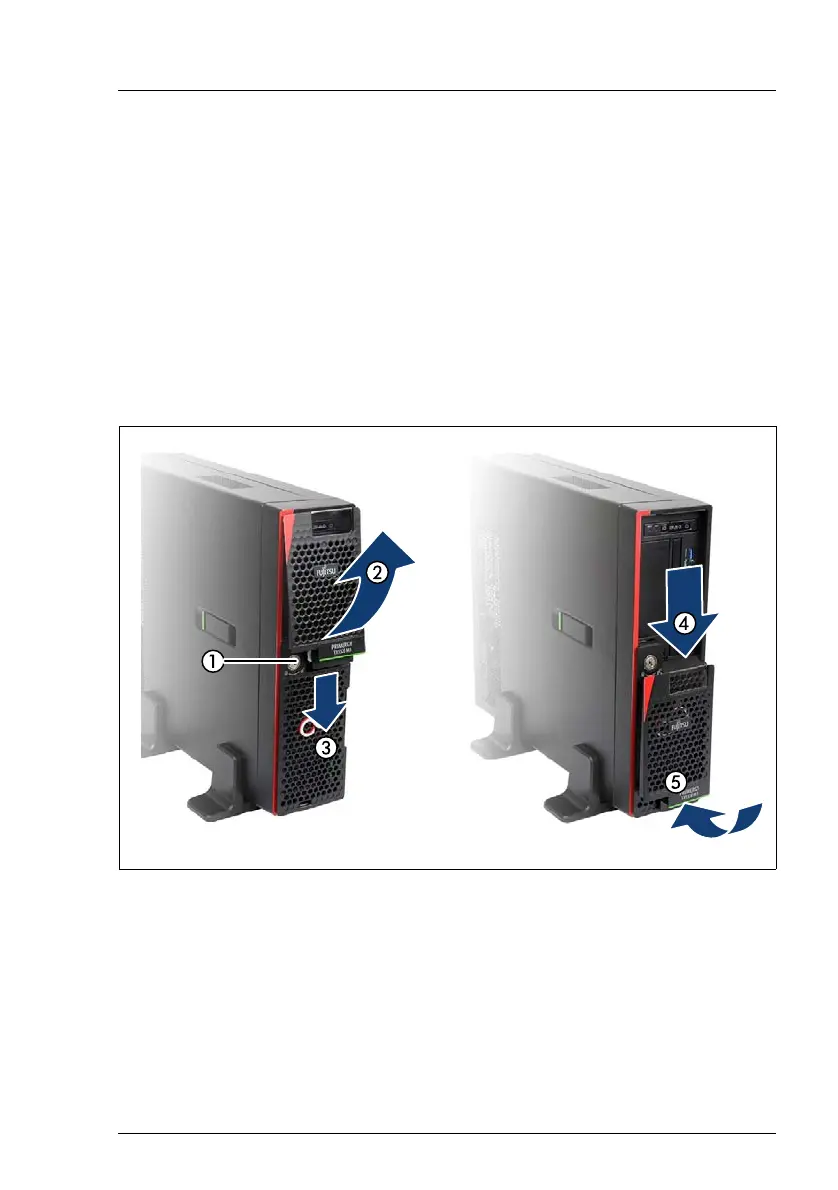

Figure 10: Opening the drive cover
Ê Turn the key counterclockwise (1) to unlock the front cover and remove the
key.
Ê Open the drive cover carefully in the direction of the arrow (2) until the
ratches of the cover are released, and pull it downward to remove it (3).
V CAUTION!
Do not pull too hard to avoid damage to the locking mechanism.

Fujitsu PRIMERGY TX1320 M3 Specifications

General

Processor socket	-
Built-in processor	No
Motherboard chipset	Intel® C236
Compatible processor series	Intel Core i3, Intel Pentium Dual-Core, Intel Xeon
Number of processors supported	1
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN	Yes
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Product color	Black, Red
Number of fans	1 fan(s)
Power supply	250 W

Weight and Dimensions

Depth	399 mm
Width	98 mm
Height	340 mm
Weight	10000 g
