62 Operating Manual TX1320 M3
Starting up and operation
Ê Attach the drive cover to the recesses on the HDD cover (4).
Ê Push down the HDD cover in the direction of the arrow (5).
I Please note the following when operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.

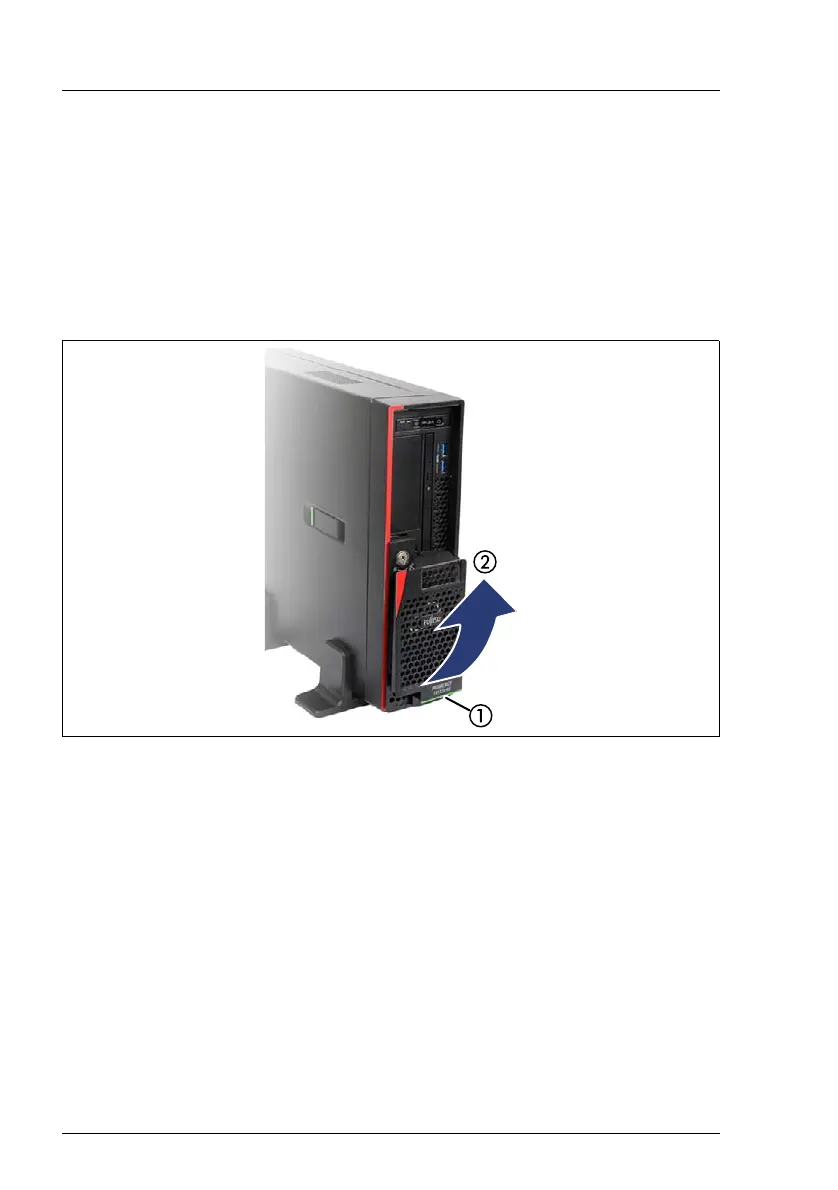

Figure 11: Removing the drive cover from the HDD cover
Ê Carefully pull out on the green release lever (1) and lift off the drive cover (2).

Fujitsu PRIMERGY TX1320 M3 Specifications

General

Processor socket	-
Built-in processor	No
Motherboard chipset	Intel® C236
Compatible processor series	Intel Core i3, Intel Pentium Dual-Core, Intel Xeon
Number of processors supported	1
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN	Yes
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Product color	Black, Red
Number of fans	1 fan(s)
Power supply	250 W

Weight and Dimensions

Depth	399 mm
Width	98 mm
Height	340 mm
Weight	10000 g
