64 Operating Manual TX1320 M3
Starting up and operation
6.3 Controls and indicators
6.3.1 Server front
6.3.1.1 Controls on the front panel

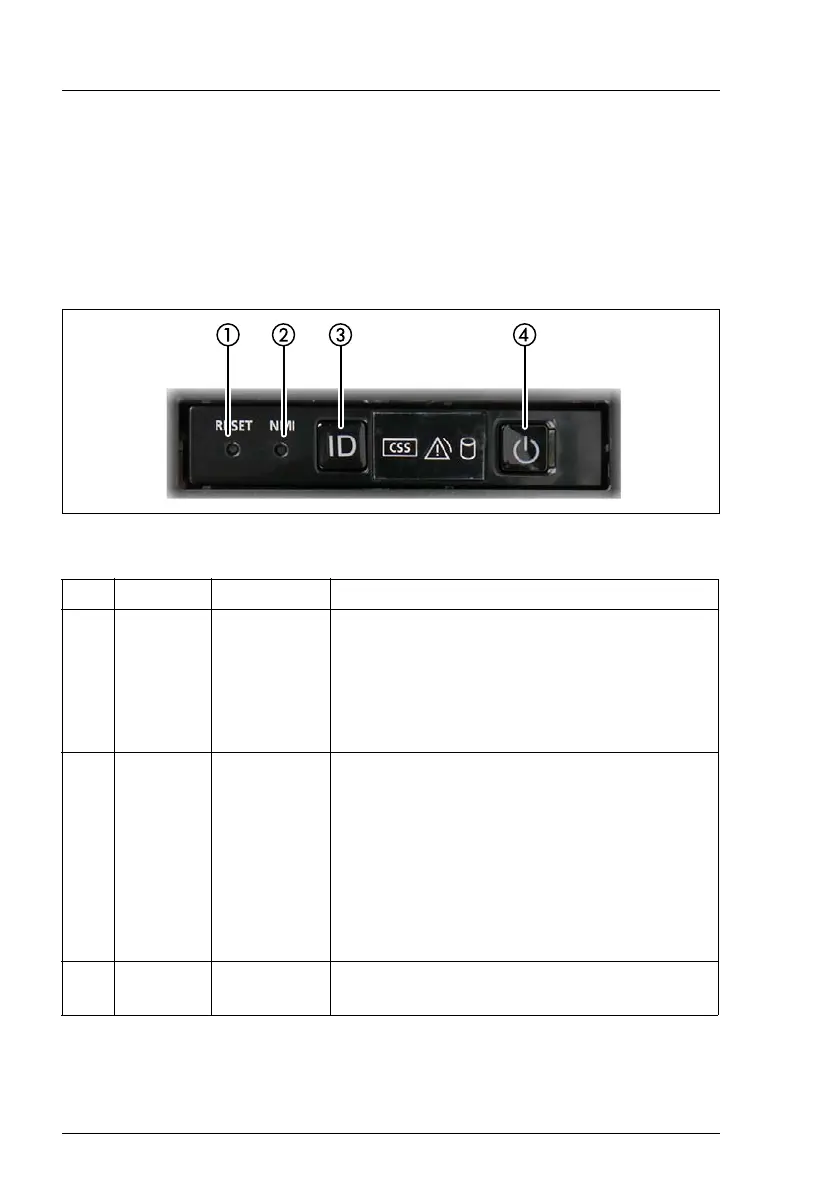

Figure 13: Controls on the front panel
Pos. Label Button Function
1 RESET Reset button
Reboots the system.
Press the reset button with a straightened end
of a paper clip.
V CAUTION!
Risk of data loss!
2 NMI NMI button
Used to troubleshoot software and device driver
errors.
Press the NMI button with a straightened end of
a paper clip.
V CAUTION!
Use this button only if directed to do so
by qualified certified maintenance
personnel!
3 ID ID button
Highlights the ID indicator on the front panel and
the rear panel for easy server identification.

Fujitsu PRIMERGY TX1320 M3 Specifications

General

Processor socket	-
Built-in processor	No
Motherboard chipset	Intel® C236
Compatible processor series	Intel Core i3, Intel Pentium Dual-Core, Intel Xeon
Number of processors supported	1
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN	Yes
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Product color	Black, Red
Number of fans	1 fan(s)
Power supply	250 W

Weight and Dimensions

Depth	399 mm
Width	98 mm
Height	340 mm
Weight	10000 g
