TX1320 M3 Operating Manual 55
The standard connectors on the rear are indicated by symbols and color-coding.

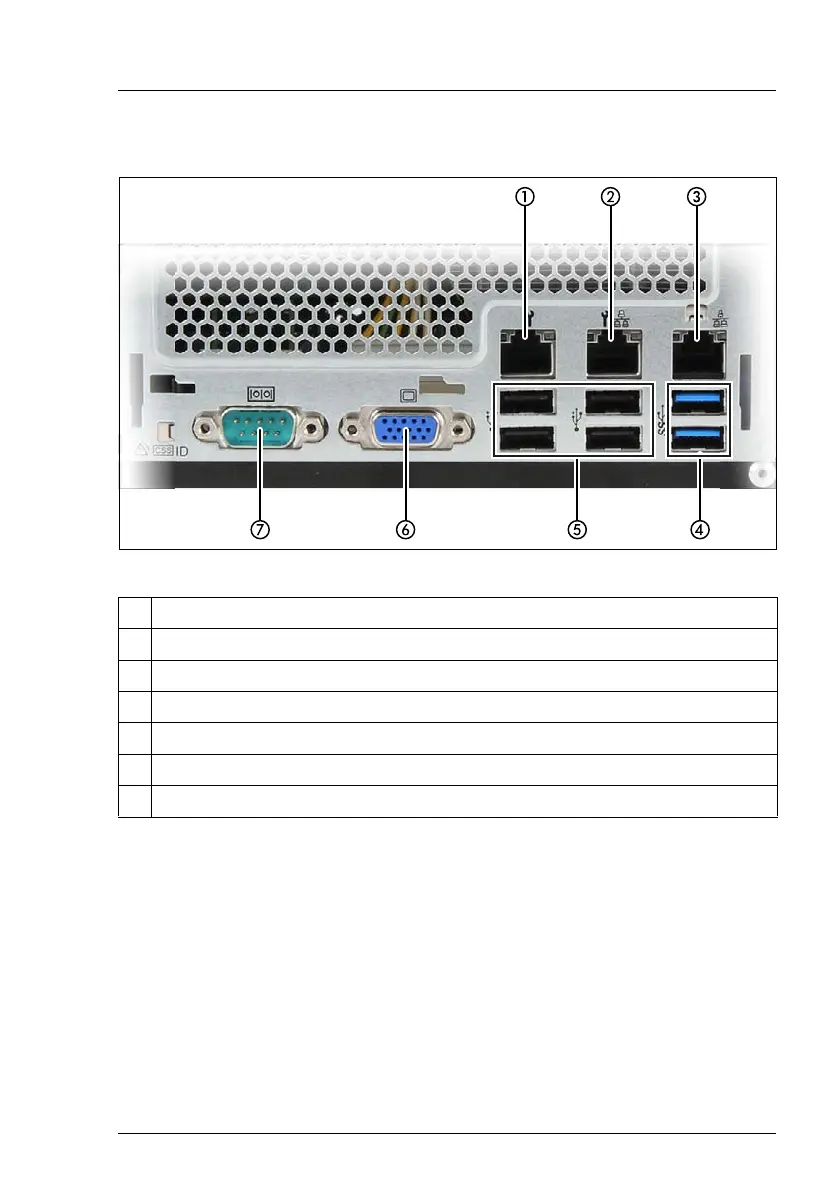

Figure 7: Connector panel on the rear side
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
1 Management LAN connector, for iRMC S4 server management function
2 Shared LAN connector (LAN1)
3 Standard LAN connector (LAN2)
4 2x USB 3.0 connectors (blue)
5 4x USB 2.0 connectors (black)
6 Video connector (blue)
7 Serial connector COM1 (turquoise)
