Fujitsu PRIMERGY TX1320 M3 User Manual

TX1320 M3 Operating Manual 69
Starting up and operation
Indicators on HDD modules

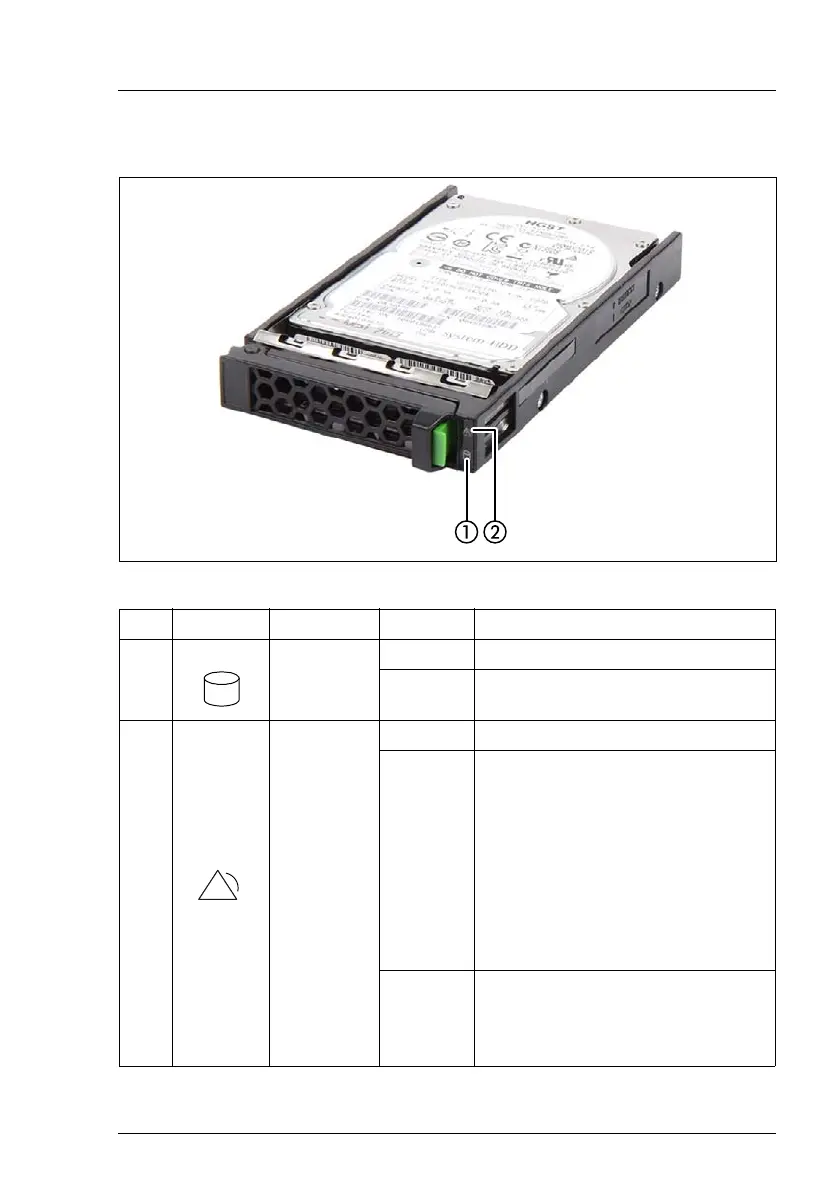

Figure 16: Indicators on the 2.5 inch HDD modules
Pos. Label Indicator Status Description
1
Access
indicator
off The HDD/SSD is inactive.
green on The HDD/SSD being accessed
2
Error
indicator
off No HDD/SSD error detected.
orange on
An HDD/SSD error has been
detected.
Possible causes:
– The drive is defective and needs
replacing.
– A RAID rebuild process has
failed.
– The HDD/SSD module has not
been inserted correctly.
orange
flashing
slowly
RAID rebuild is in progress.
Data is being restored after replacing
a drive that has been combined into
a RAID array.
!

Fujitsu PRIMERGY TX1320 M3 Specifications

General

Processor socket	-
Built-in processor	No
Motherboard chipset	Intel® C236
Compatible processor series	Intel Core i3, Intel Pentium Dual-Core, Intel Xeon
Number of processors supported	1
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN	Yes
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Product color	Black, Red
Number of fans	1 fan(s)
Power supply	250 W

Weight and Dimensions

Depth	399 mm
Width	98 mm
Height	340 mm
Weight	10000 g
