TX1320 M4 Operating Manual 35
Product description
3.3.3 Indicators on the server rear
3.3.3.1 Indicators on the I/O panel
ID, CSS and Global Error indicators

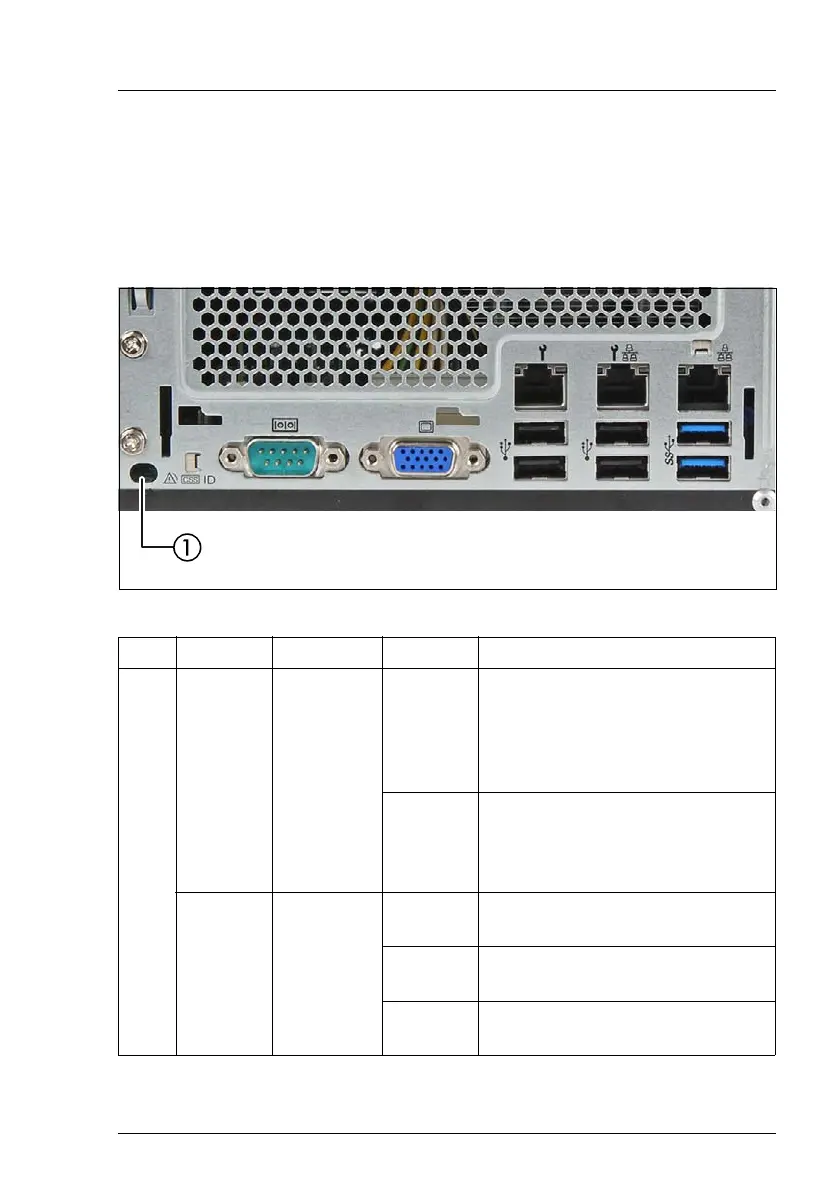

Figure 9: ID, CSS and Global Error indicators
Pos. Label Indicator Status Description
1
ID
ID
indicator,
see also
"iRMC-
related
status
signals" on
page 32
blue on
The server has been highlighted
using ServerView Operations
Manager, iRMC web interface or
the ID button on the front panel for
easy identification.
flashing
blue
The server has been highlighted
for easy identification using the
iRMC (AVR) with disabled local
VGA output.
[CSS]
CSS
indicator
off
No critical event detected (CSS
component).
orange
on
Prefailure event detected (CSS
component).
flashing
orange
CSS component failure detected.
