76 Operating Manual TX1320 M4
Operation
6.2 Access to the drives
6.2.1 Removing the drive cover

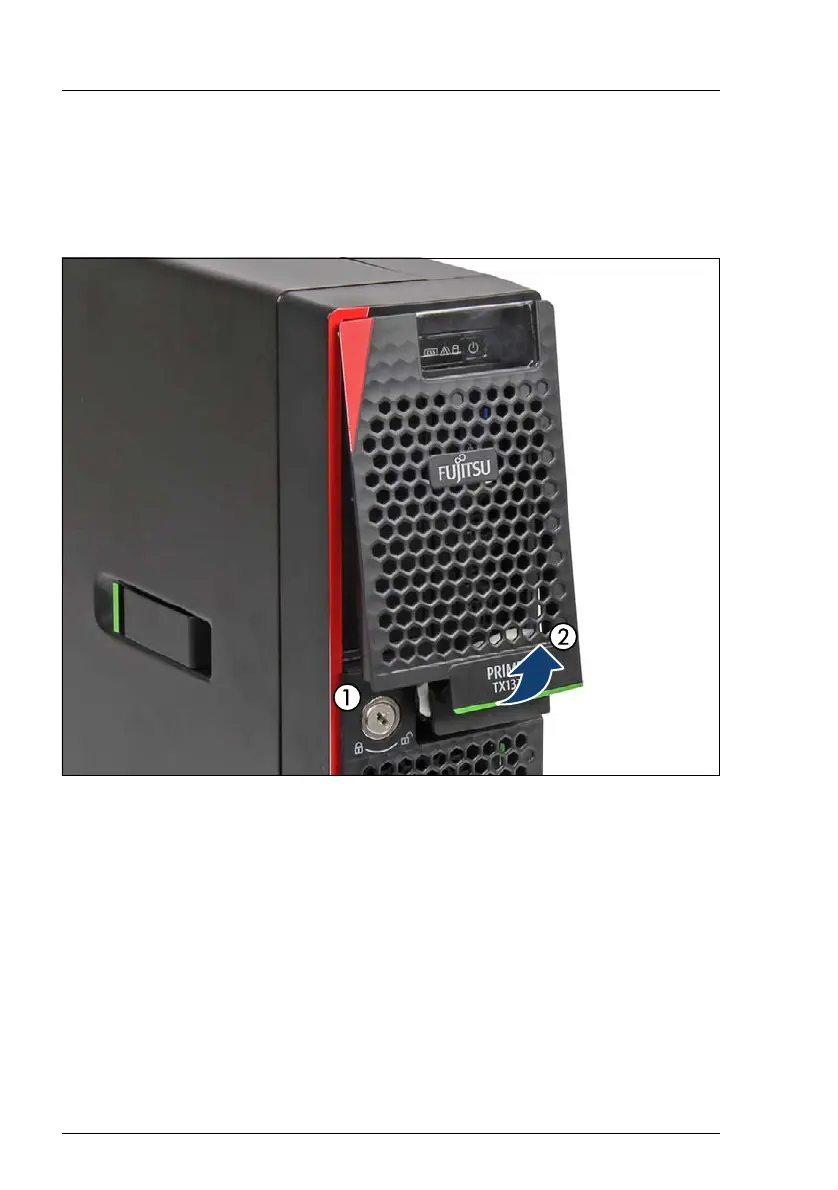

Figure 20: Removing the drive cover
Ê Turn the key counterclockwise (1) to unlock the drive cover and remove the
key.
I Depending on the setting of the green hook in the drive cover, you
can open the drive cover without turning the key or only with turning
the key.
Ê Open the drive cover carefully in the direction of the arrow (2) until the cover
is released and remove it.
V CAUTION!
Do not pull too hard to avoid damage to the locking mechanism.
