Fujitsu PRIMERGY TX1320 M4 - Removing the HDD Cover

78 Operating Manual TX1320 M4
Operation
6.2.2 Removing the HDD cover

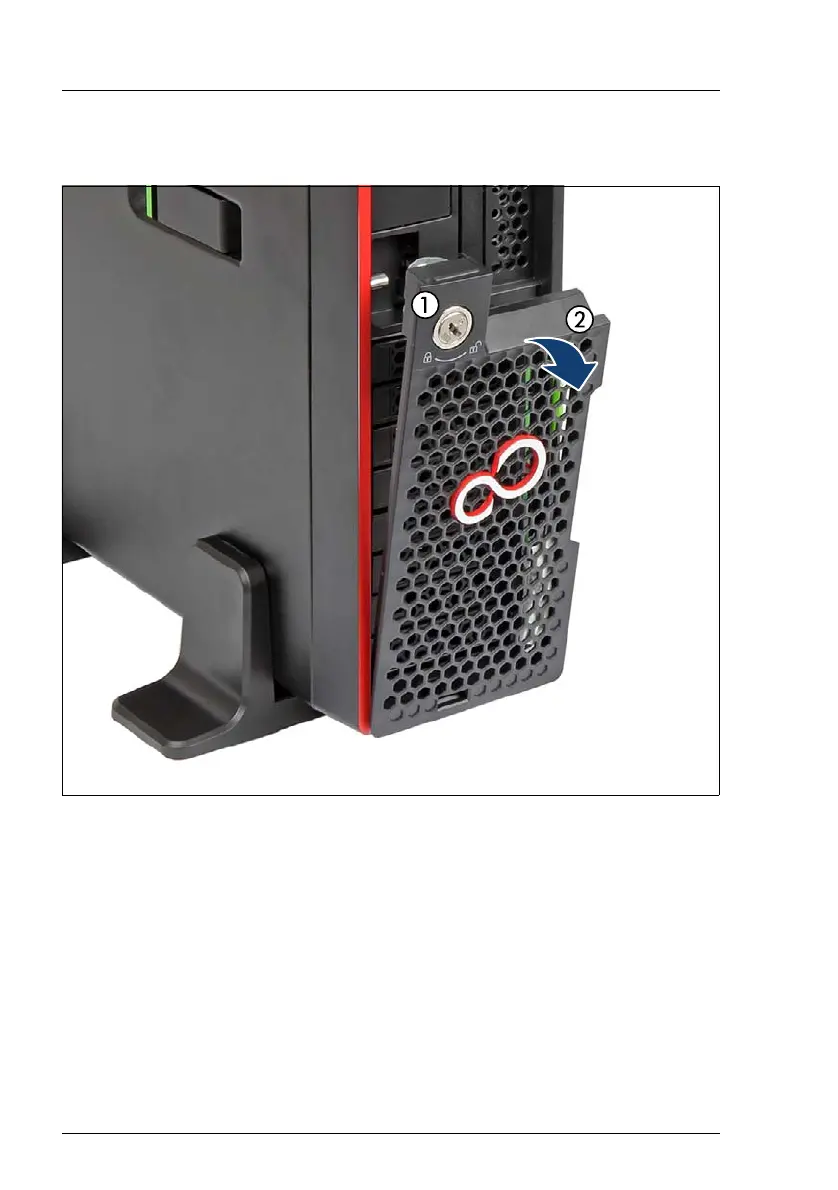

Figure 22: Removing the HDD cover
Ê Turn the key counterclockwise (1) to unlock the drive cover and remove the
key.
Ê Open the HDD cover in the direction of the arrow and remove it (2).
The HDD/SSD cover is replaced and the server locked in the reverse order.
