TX1320 M4 Operating Manual 77

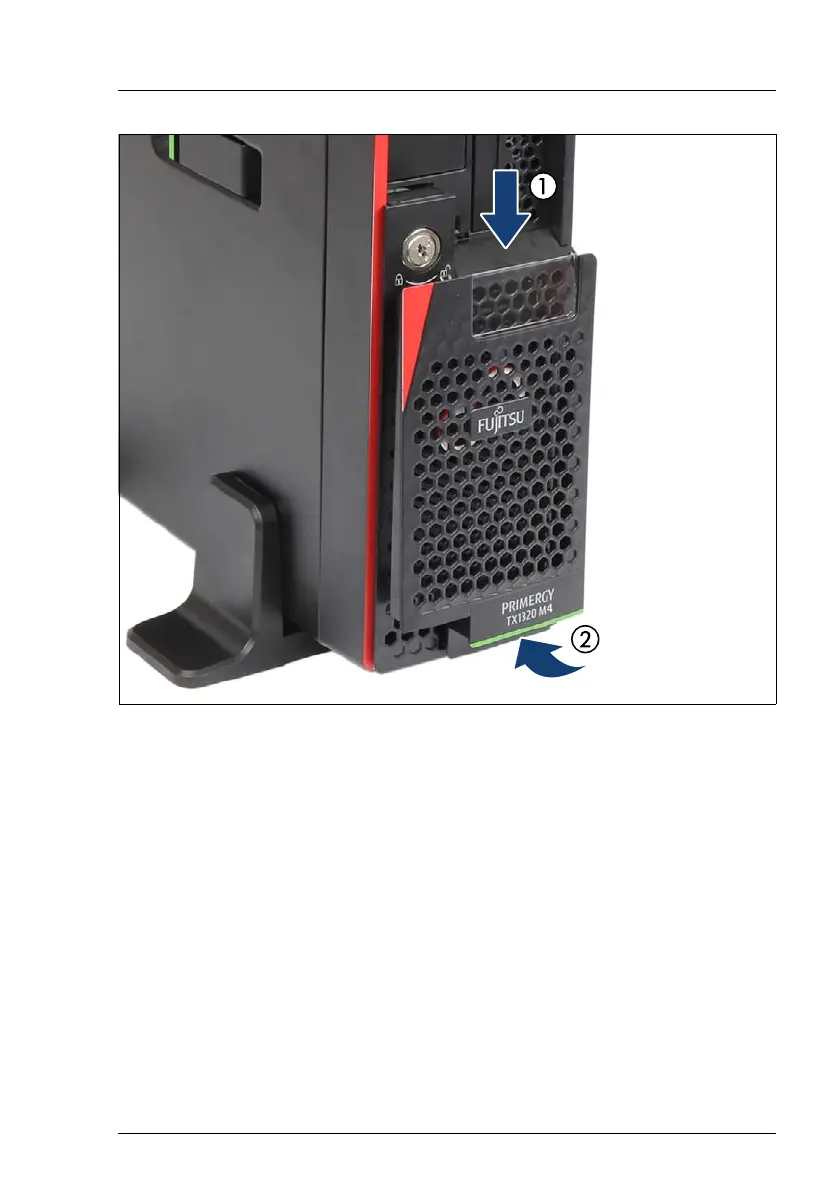

Figure 21: Placing the drive cover in front of the HDD cover
Ê Place the drive cover on the HDD cover (1).
Ê Push the drive cover in the direction of the arrow.
I When operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.
