110

Modular RAID Controllers

Modular RAID 12Gb/s (SAS3.0)

Connecting the Global Drive Activity LED cable

To activate the HDD activity indicator at the front of the system a cable must be

connected to the Global Drive Activity LED connector of the RAID controller

"PRAID EP440i" (see figure 40).

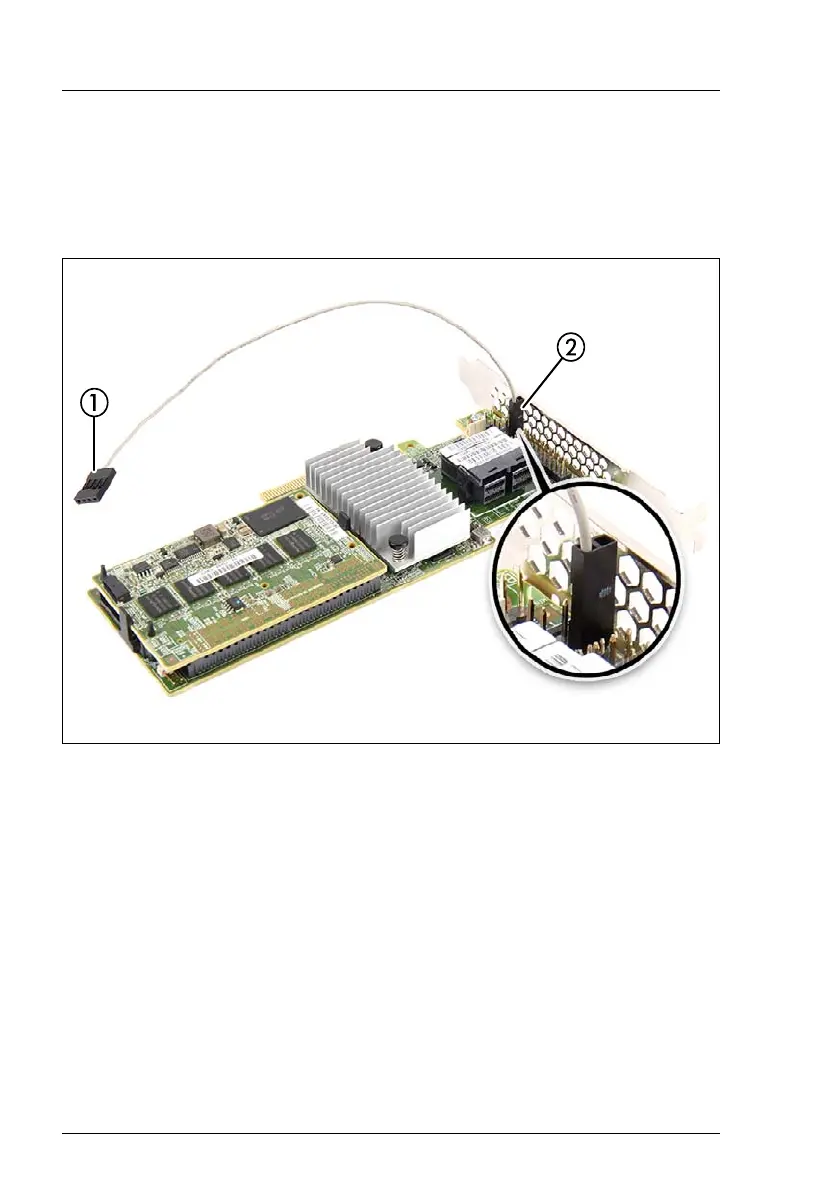

Figure 41: Connecting the Global Drive Activity LED cable - variant 1
