56 Modular RAID Controllers
Modular RAID 6Gb/s (SAS2.0)
4.4.2 Controller versions
4.4.3 Connectors and indicators

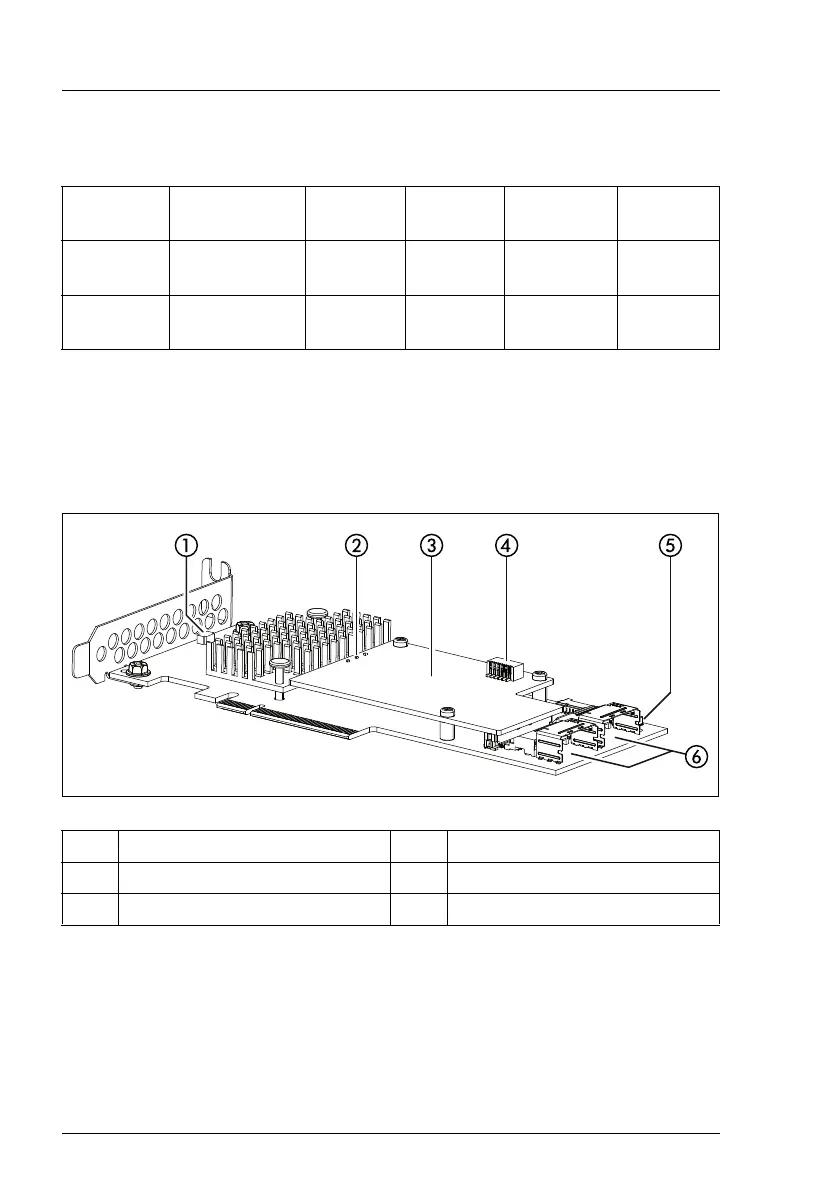

The following figure shows the location of the connectors and indicators on the
SAS RAID controller.
Name Chip PCIe Cache
No. of SAS
channels
Bracket
type
S26361-
D3116-Bx
LSI SAS2208 PCIe 2.0 1 GB 8
low profile
full height
S26361-
D3116-Cx
LSI SAS2208 PCIe 3.0 1 GB 8
low profile
full height
1 HDD LED connector 4 FBU connector on TFM
2 TFM indicator LEDs 5 Indicator LEDs
3 TFM (optional) 6 SAS cable connectors
