Modular RAID Controllers 109
Modular RAID 12Gb/s (SAS3.0)
5.6.2 Controller versions
5.6.3 Connectors
The following figure shows the location of the connectors on the SAS RAID
controller.

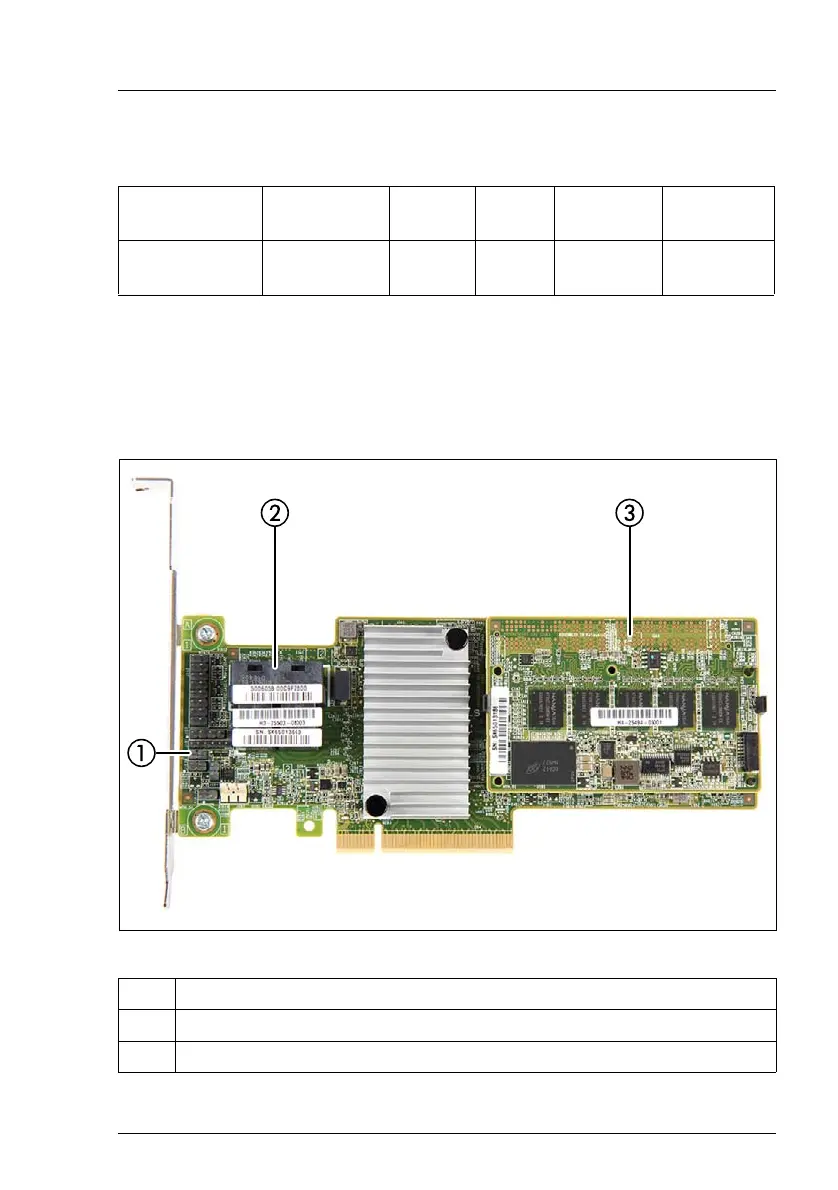

Figure 40: "PRAID EP440i" board layout
Name Chip PCIe Cache
No. of SAS
channels
Bracket
type
PRAID EP440i LSI SAS3108 PCIe 3.0 4 GB 8
low profile
full height
1 Global Drive Activity LED connector
2 SAS cable connectors
3 assembled TFM
