Modular RAID Controllers
97
Modular RAID 12Gb/s (SAS3.0)
5.4.3 Connectors and indicators
The following figure shows the location of the connectors and indicators on the
SAS RAID controller.

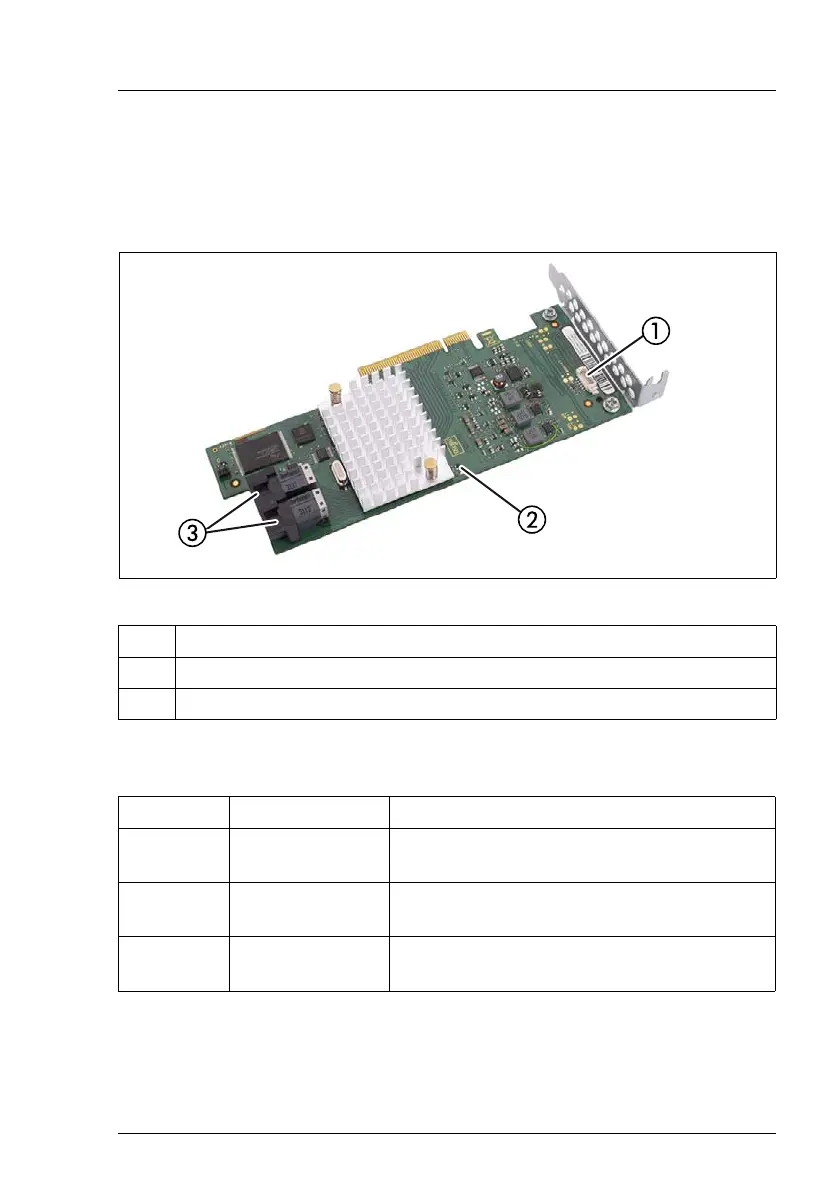

Figure 35: "PRAID CP400i" board layout
Connectors
1 HDD LED connector
2 Indicators
3 SAS connectors
Connector Type Description
SAS MLC1 x4 SAS, ports 0- 3
SFF 8643 Mini SAS HD 4i connector for SAS
IO cable to backplane and HDDs
SAS MLC2 x4 SAS, ports 4- 7
SFF 8643 Mini SAS HD 4i connector for SAS
IO cable to backplane and HDDs
HDD LED
HDD activity
indication LED
6-pin connector
Pin 4 to connect activity LED
