Modular RAID Controllers
81
Modular RAID 12Gb/s (SAS3.0)
I For mounting the TFM, remove the controller from your system.
When removing / connecting the FBU from / to the TFM, remove AC
power from your system.
I Depending on the controller cache size, two different TFM kits are
available.
Installing the TFM

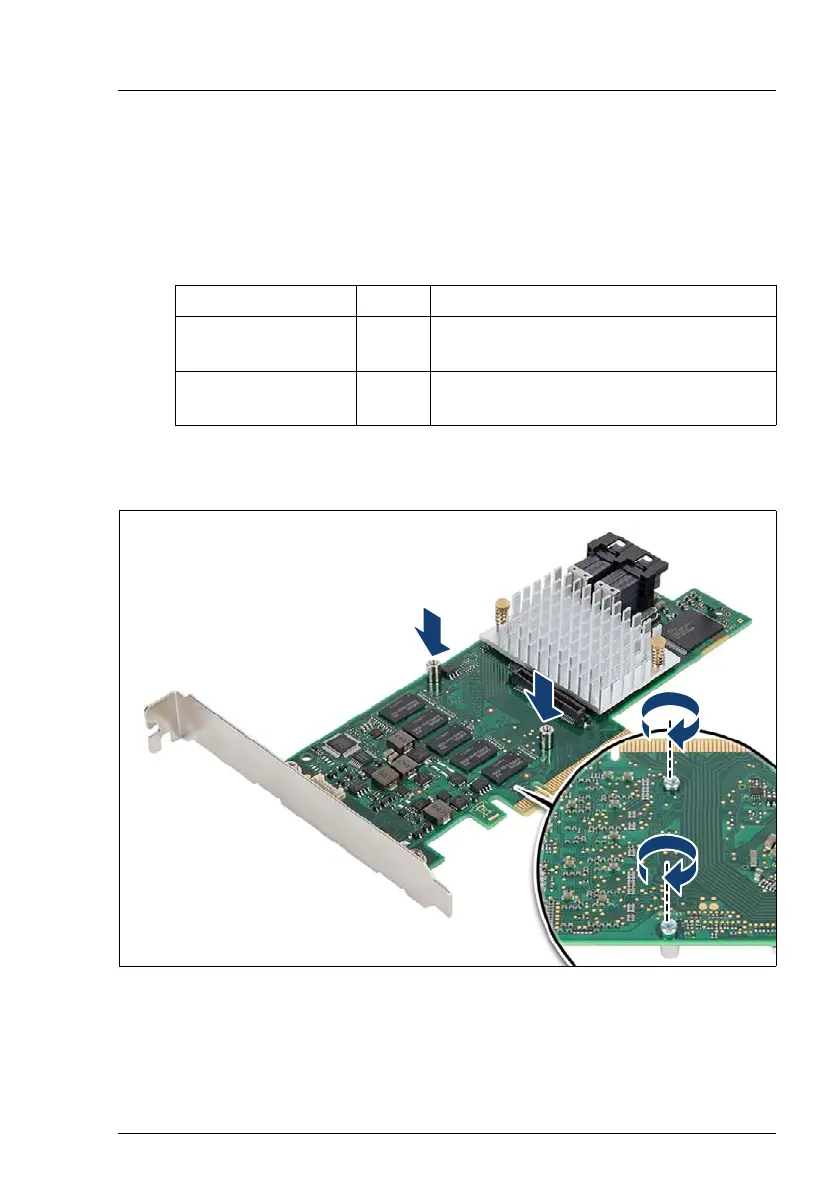

Figure 25: Installing the TFM (A)
Ê Ground yourself, then fit the two spacer bolts on the controller.
Name Cache TFM kit
PRAID EP400i
S26361-D3216-Axx
1 GB PRAID EP400i TFM (LSZ:03-25444-05)
PRAID EP420i
S26361-D3216-Bxx
2 GB PRAID EP420i TFM (LSZ:03-25444-01)
