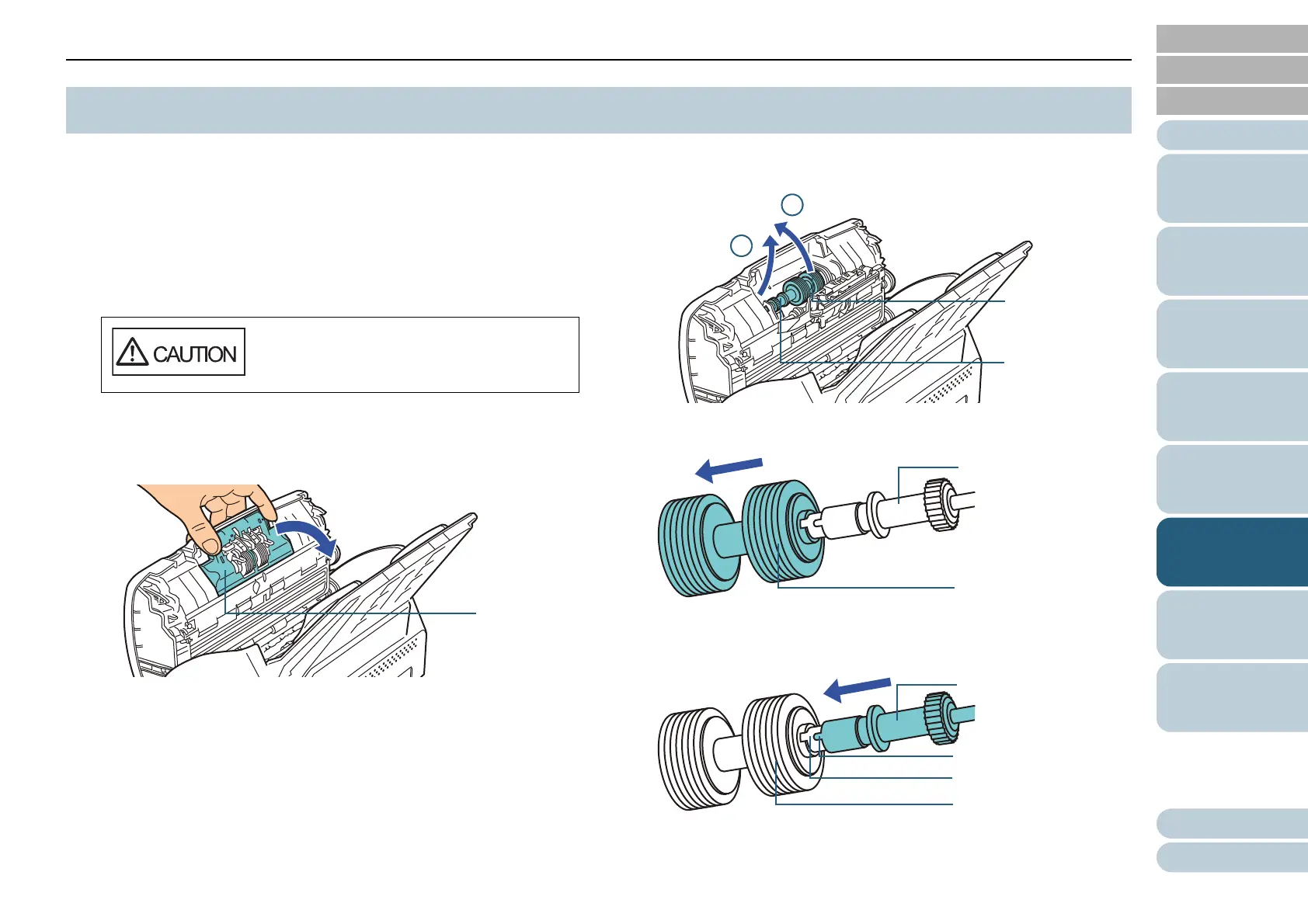

Replace the brake roller in following procedure.
1 Remove all documents from the ADF paper chute
(feeder).
2 Open the ADF.
For details, refer to "1.4 Opening/Closing the ADF" (page 25).
3 Remove the brake roller.
1 Hold both ends of the cover, and open it in the direction of the
arrow.
2 Lift the right side of the roller first, then pull out the shaft from the
slot on the left.
4 Remove the brake roller from its shaft.
5 Attach a new brake roller on the shaft.
Insert the protrusion on the shaft into the slot.
6.2 Replacing the Brake Roller
Be careful not to have your fingers caught
when the ADF closes.
Slot
Protrusion
Shaft
Brake roller
To Next Page
