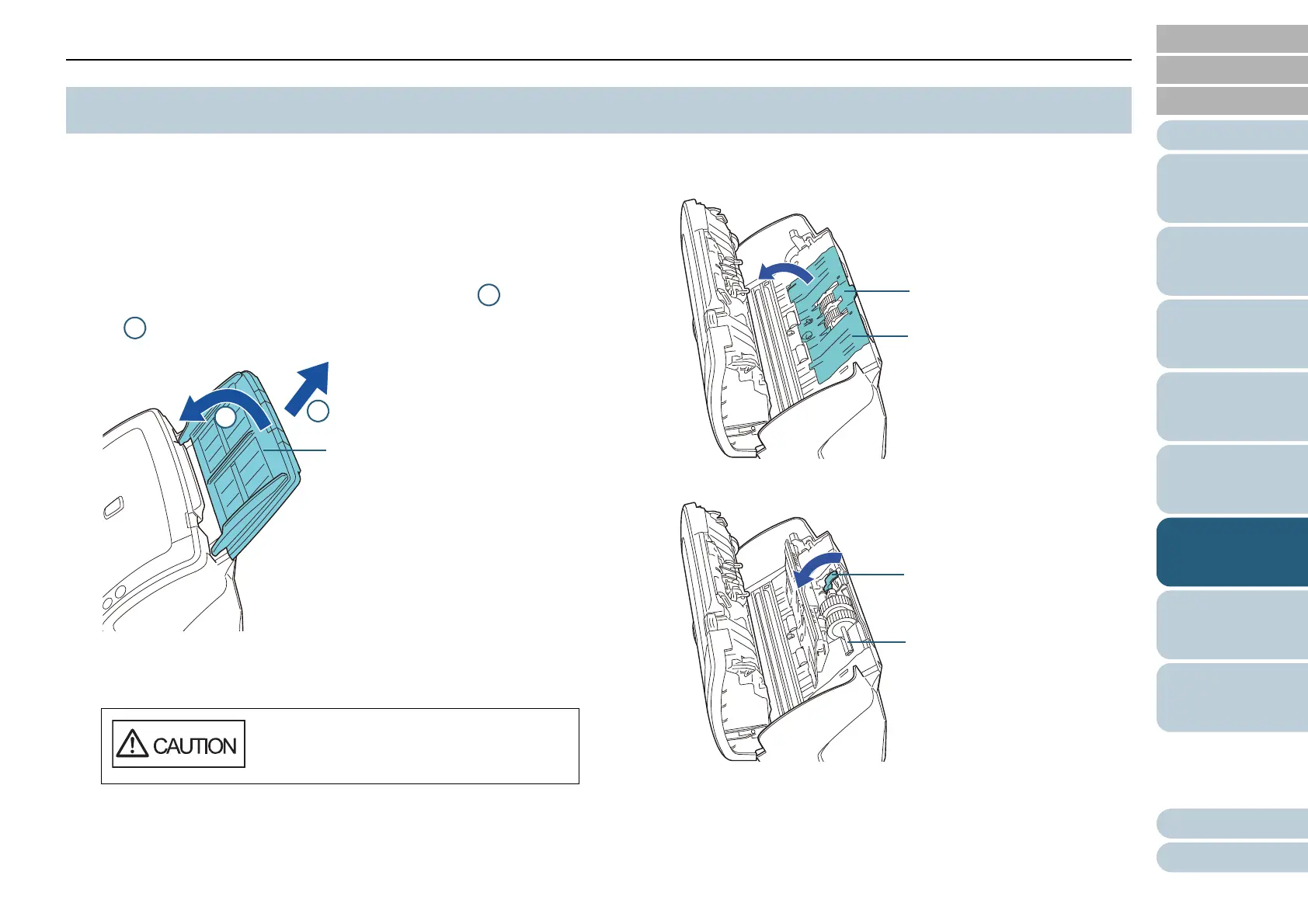

Replace the pick roller in following procedure.
1 Remove all documents from the ADF paper chute
(feeder).
2 Remove the ADF paper chute (feeder).
Hold both ends of the ADF paper chute (feeder), and lift then pull it
out in the direction of the arrow.
3 Open the ADF.
For details, refer to "1.4 Opening/Closing the ADF" (page 25).
4 Remove the pick roller.
1 Open the sheet guide by lifting the tab.
2 Rotate the bushing on the shaft.
6.3 Replacing the Pick Roller
Be careful not to have your fingers caught
when the ADF closes.
2
1
ADF paper chute
(feeder)
To Next Page
