5.1 Consumable and Replacement Cycle (2)
1
2
3 4 5
Guidelines for Consumable Replacement Cycle
With this product, you can learn how many times the consumables are used so that you can estimate the
right timing for the replacement.
1. When turning on the power, check that the scanner is connected to the PC.
Refer to "2.3 Connecting the USB cable " in fi-5110C Getting Started on the Setup CD-ROM for
information about connecting the scanner to a personal computer.

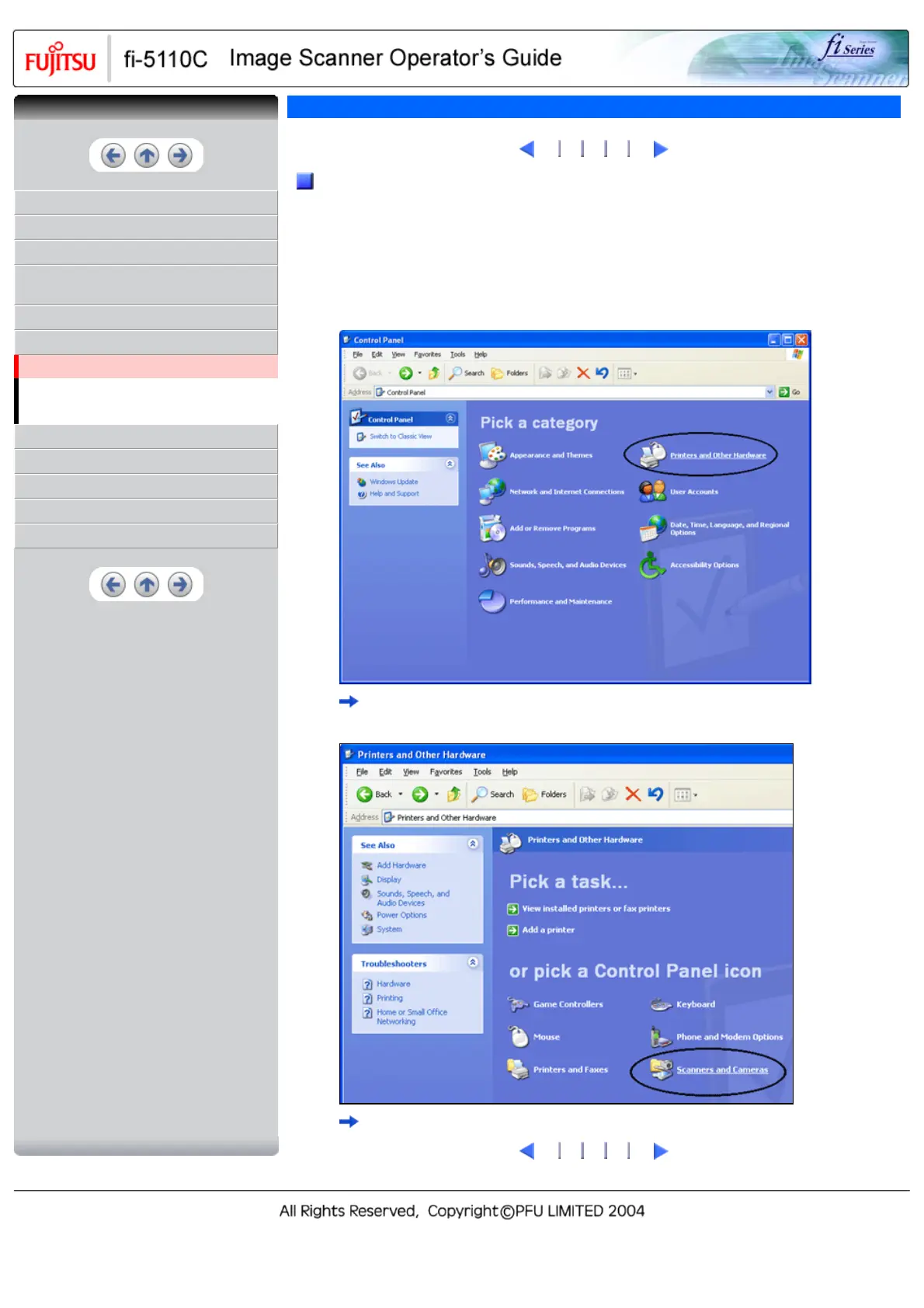

2. Double click the "Printer and Other Hardware" icon on the operator panel of the host computer.
The [Printer and Other Hardware] screen is displayed.
3. In the [Printer and Other Hardware] screen, double click the "Scanners and Cameras" icon.
The [Scanners and Cameras] screen is displayed.
1
2
3 4 5
