Managing IP networks Managing hardware
258 U41855-J-Z125-3-76
In the case of AU PQ the chassis and system components IO Unit and Management
Board are displayed together as one unit.
10.2.1.5 Overview of the performance and utilization of the Net Unit ports

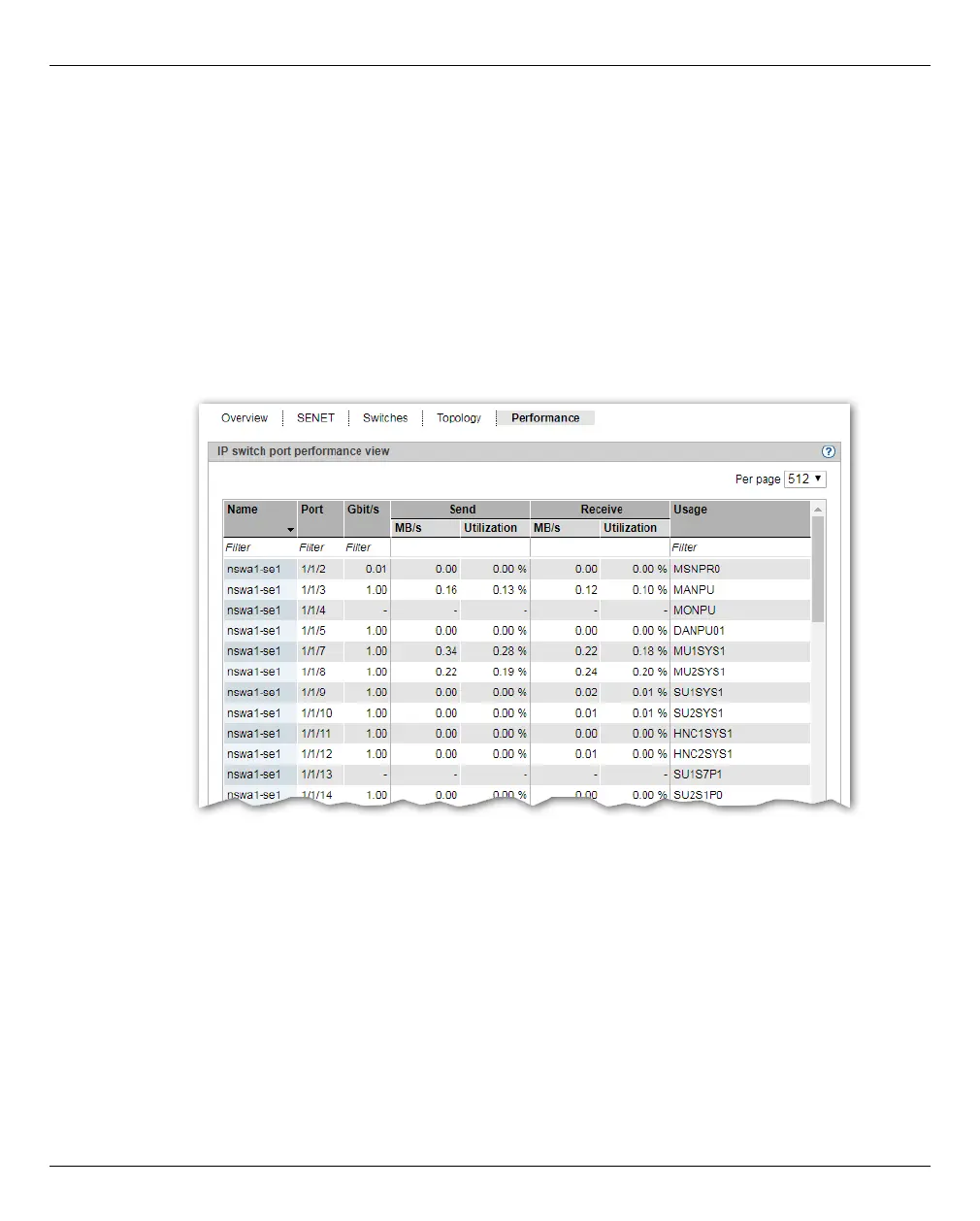

An overview of the performance and utilization of the switches in the Net Unit is supplied by
the Performance tab. The maximum and current data throughput rate (in MB/s) and the
utilization (in %) are displayed for each Net Unit port (for each of the Net Unit's
connections). A distinction is made between the send and receive directions for data
throughput and utilization.
Ê Select Hardware → IP networks, Performance tab.
